Optisan HX 4-12x40 SFP Riflescope – Duplex Reticle

Name: Optisan HX 4-12x40 SFP Riflescope – Duplex Reticle
Brand: Optisan
SKU: OP-37504
Price: 160.0 EUR
Availability: OutOfStock

Optisan HX 4-12x40 SFP Riflescope – Duplex Reticle

€160,00 EUR

Sale Sold out

Taxes included. Shipping calculated at checkout.

SKU:OP-37504

Out of stock

14-day right of withdrawal for consumers
Secure payment: PayPal, credit card, bank transfer

4.9/5 on Trustpilot · over 1,000 reviews

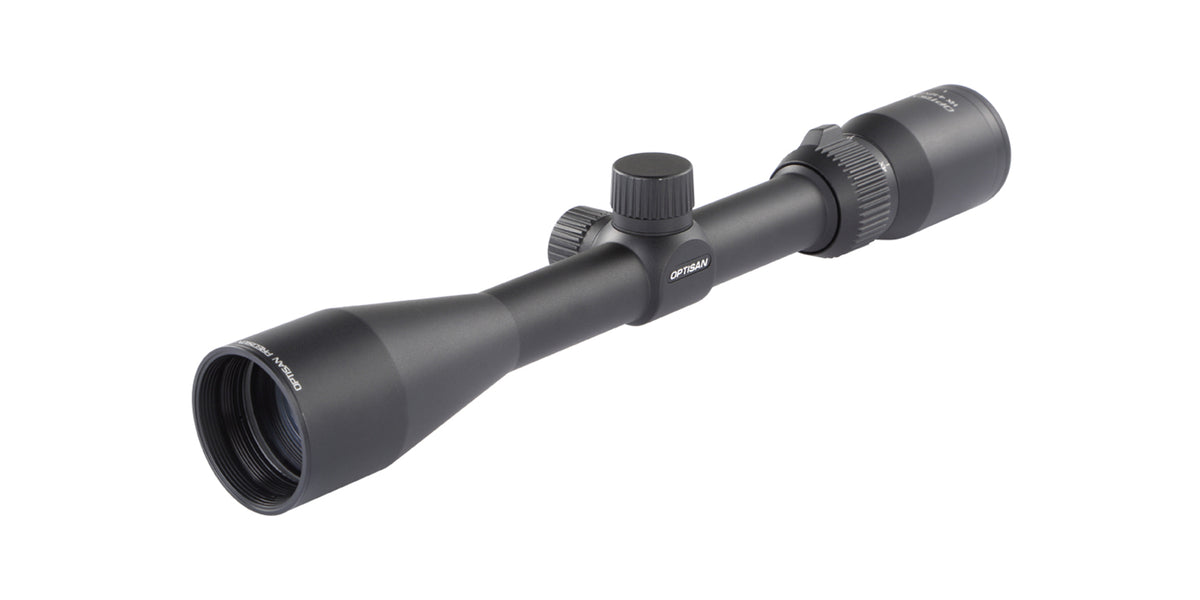

Optisan HX 4-12x40 SFP – Duplex reticle

The Optisan HX 4-12x40 is a second focal plane (SFP) riflescope with a classic Duplex reticle, 1" (25.4 mm) tube and 1/4 MOA adjustments. It belongs to the HX series, Optisan's entry-level line redesigned to offer a 25% wider field of view than most 3-9x40 scopes on the market.

Built as a simple, rugged scope, it is rated by the manufacturer for most magnum centerfire calibers such as .270 Win, .308 and .30-06. The Duplex reticle, with a fine centre crosshair and thick outer posts, is the ideal choice for those who want classic, instinctive aiming. The turrets are finger adjustable and allow tool-free zero reset; parallax is fixed at 100 yards and the optics are fully multi-coated.

Key features

Magnification: 4-12x
Objective diameter: 40 mm (objective outer diameter 48 mm)
Focal plane: second (SFP)

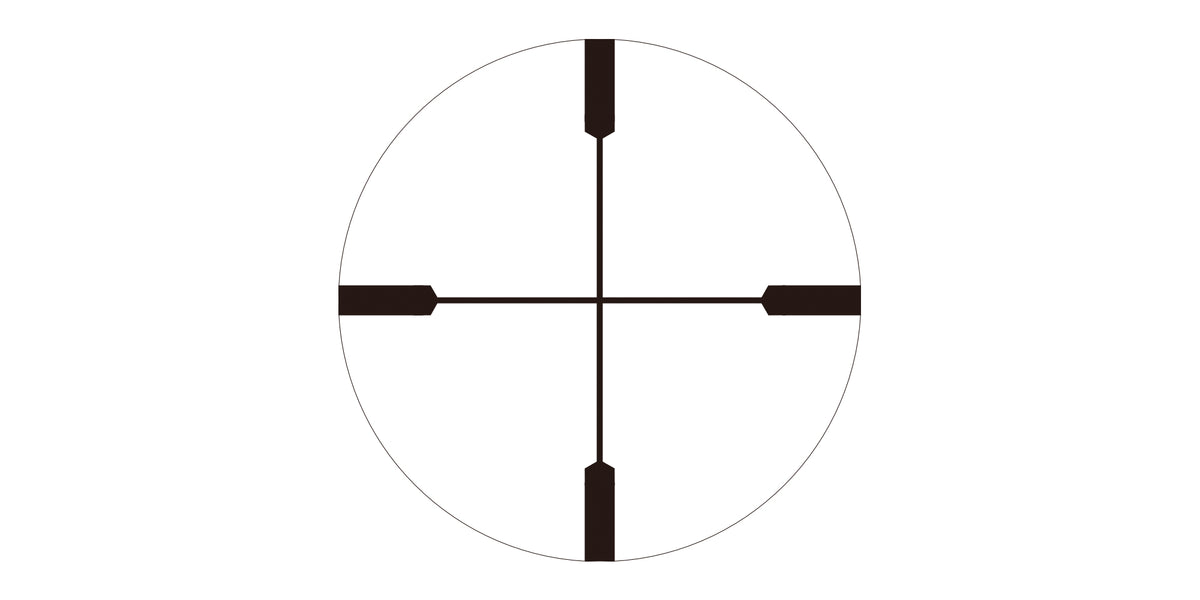

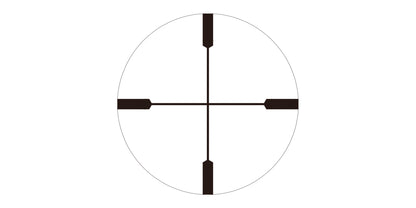

Reticle: Duplex, non-illuminated
Click value: 1/4 MOA (elevation and windage)
Travel per turn: 12 MOA
Elevation travel: ≥ 40 MOA; windage travel: ≥ 40 MOA

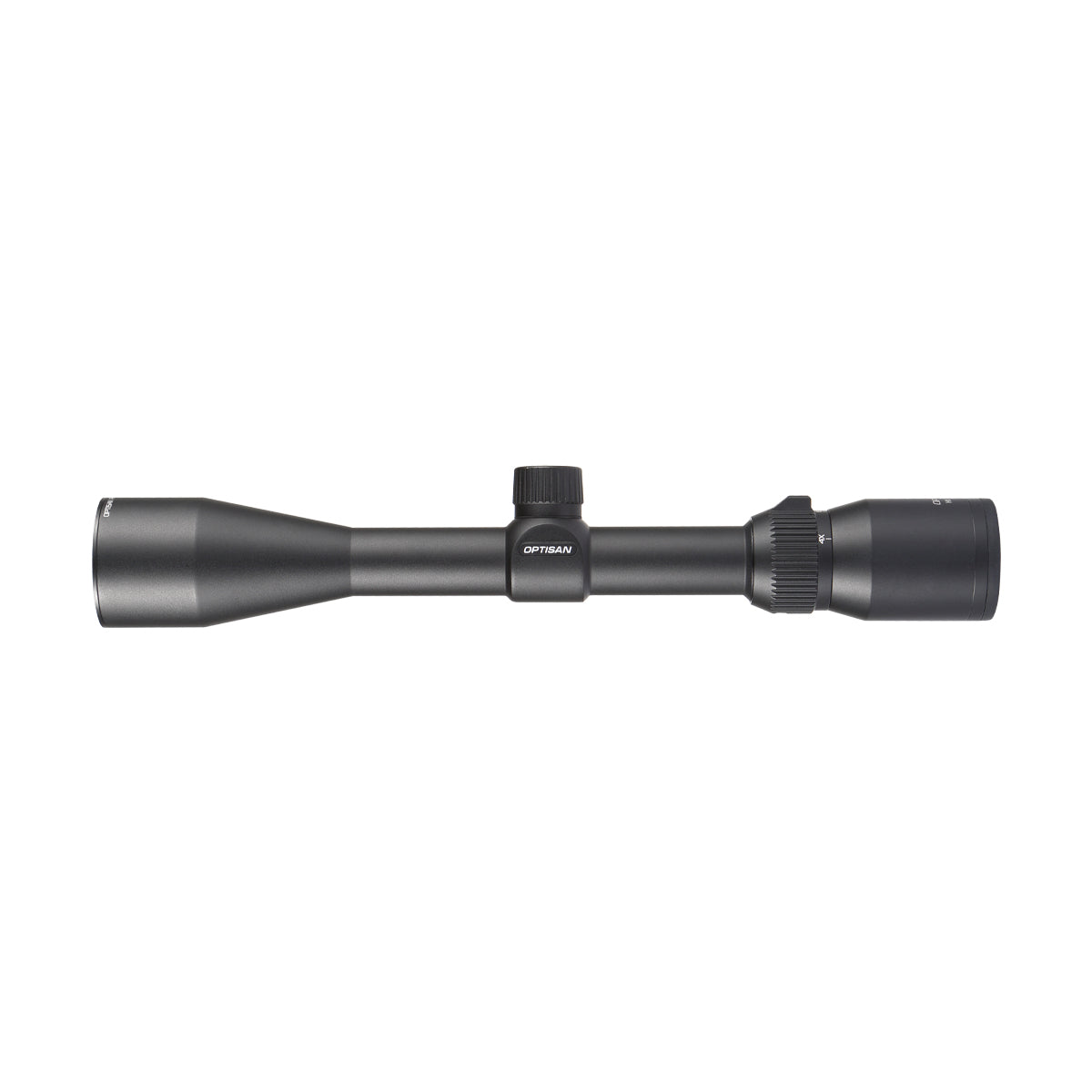

Turrets: finger adjustable, zero resettable
Parallax: fixed at 100 yards (approx. 91 m)
Field of view: 11.33 – 3.78 m at 100 m (34 – 11.35 ft/100 yd)
Eye relief: 88.9 – 83.8 mm
Exit pupil: 10 mm (4x) – 3.33 mm (12x)
Diopter adjustment: +2 to -3 dpt
Fully multi-coated optics
Tube: one-piece aircraft aluminium, 25.4 mm (1") diameter
Eyepiece diameter: 44.8 mm
Length: 318 mm
Weight: 430 g
Finish: matte black
Operating temperature: -20 to +50 °C
Waterproofing: IPX7

Recommended use

Suited to hunting with centerfire rifles (for example .270 Win, .308, .30-06) and medium-range shooting, when a simple and fast reticle is preferred. Requires 1" (25.4 mm) rings or mount, not included.
