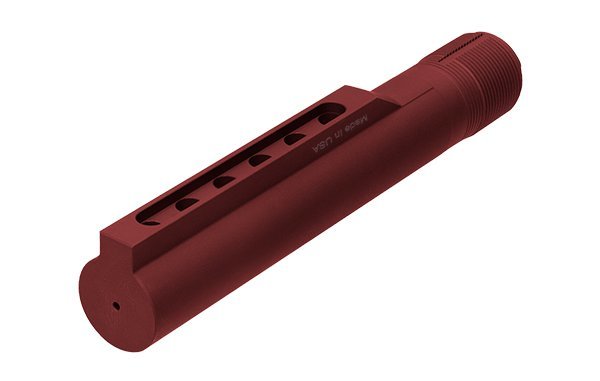

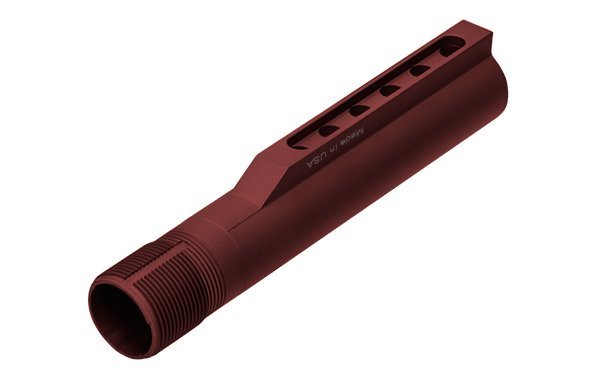

UTG PRO 6-position mil-spec AR15 extension tube red
The UTG Pro TLU001R is a mil-spec diameter receiver extension for AR15 rifles with six adjustment positions, in the red hard-coat anodized version. It is the component on which the telescopic stock slides: it defines the length of pull and houses the buffer and recoil spring.
The tube is CNC machined from aircraft-grade aluminum with rolled threads, which are stronger than cut threads. The six notches allow for length of pull adjustment with a 16.56 mm pitch, while tight tolerances ensure wobble-free sliding with mil-spec telescopic stocks. The UTG catalog lists the TLU001R as a red variant of the same TLU001 reference, also available in black, blue, bronze, and FDE.
Main features
Platform: AR15, mil-spec diameter
Adjustment positions: 6, 16.56 mm pitch
Total length: 18.4 cm; useful depth 177.8 mm
Width 29 mm, height 36.5 mm
Material: 6061-T6 aluminum with rolled threads
Finish: red hard-coat anodizing
Compatible with AR15 carbine buffers and springs and 2.5" short buffers for AR308
Recommended use
Suitable for mounting or replacing the extension tube on AR15s with mil-spec telescopic stocks when a colored finish is desired.
Package contents
The package contains only the extension tube: stock, buffer, spring, castle nut, and receiver end plate are not included.
