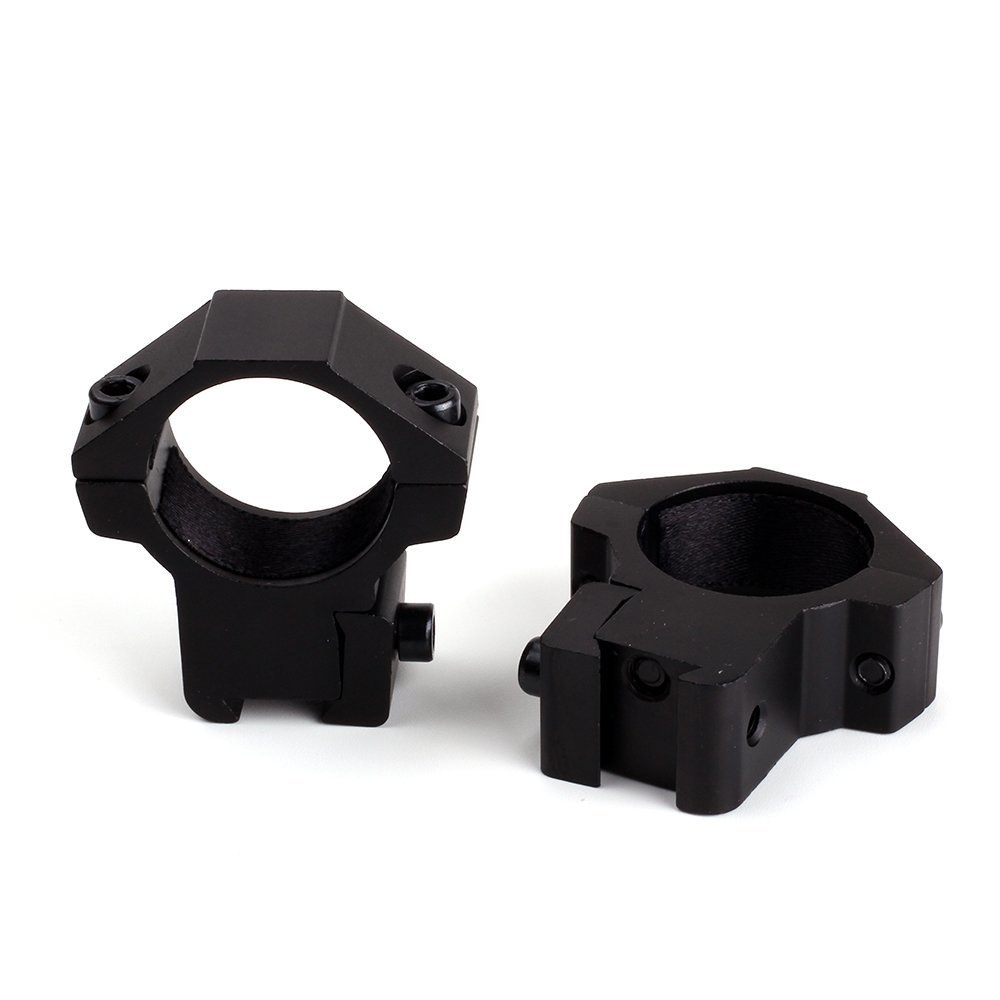

UTG 11mm Dovetail rings, 1 inch, medium profile

UTG 11 mm Dovetail Rings, 1 inch, Medium Profile

The UTG RGPM-25M4 are a pair of 1-inch scope rings for 11 mm dovetail rails, the standard for air rifles and .22 caliber firearms. The medium profile is the most common choice: it keeps the line of sight close to the barrel while still accommodating objective bells up to 52 mm.

Each ring is machined from aircraft-grade aluminum alloy with a matte black anodized finish. The side locking plate is reversible and adapts to different dovetail widths, while the included stop pin prevents the rings from sliding under the reverse recoil of spring-piston air rifles.

Main features

• Ring diameter: 1 inch (25.4 mm), sold in pairs
• Profile: medium, center height 26.8 mm; saddle height 14.1 mm
• Ring width: 21 mm
• Maximum objective bell diameter: 52 mm
• Mount: 11 mm dovetail rail, footprint 21 mm per ring
• Reversible locking plate with stop pin
• Torque specs: 35 in-lbs M4 side plate, 15 in-lbs M3 top screw
• Material: aircraft-grade aluminum alloy, matte black anodized
• Weight: 46 g per ring

Recommended use

Suitable for scopes with a 1-inch tube and bell up to 52 mm on air rifles and .22 caliber firearms with an 11 mm dovetail rail.

Package contents

• Pair of rings
• 2 hex screws
• 1 stop pin
• 2.5 mm, 3 mm, and 4 mm Allen keys

Manufacturer code: RGPM-25M4
