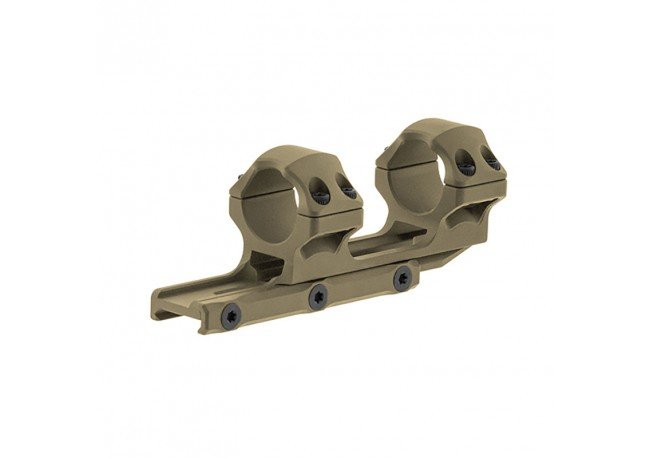

UTG Accu-Sync 1" Cantilever Mount, 34 mm Offset, Medium Profile, FDE
The Accu-Sync AIR11834D is the Cerakote Flat Dark Earth version of the one-piece cantilever mount for 1-inch tube scopes, featuring a 34 mm forward offset and a medium profile. Being machined from a single piece, it keeps the two rings aligned with each other regardless of the rail machining on which it is mounted.
The body is CNC-machined from 6061-T6 aluminum, finished in FDE Cerakote, and lightened by relief cuts that reduce mass without compromising load-bearing sections; the edges are radiused to prevent snagging on equipment. The rings are machined progressively to achieve a precise internal diameter and correct tube alignment, a condition that prevents deformation and pressure points on the scope. Zero retention is ensured by self-locking Torx screws and integral square-section recoil lugs, and the manufacturer rates the mount for calibers up to .338 Lapua Magnum.
Main features
Ring diameter 1" (25.4 mm), ring width 25 mm
Medium profile, center height 31 mm, saddle height 18 mm
Forward offset 34 mm, ring spacing 44 mm
100 mm (3.94") base, occupies 11 Picatinny slots
6061-T6 aluminum with FDE Cerakote finish
Maximum compatible objective lens diameter 61 mm (2.40")
Rated for use up to .338 Lapua Magnum
Weight 139 g (4.91 oz)
Tightening torque 25 in-lbs for top screws and 35 in-lbs for the side plate (Torx T20)
Recommended use
Suitable for rifles with a Picatinny rail where the scope needs to be positioned forward: the offset compensates for correct eye relief when the scope would otherwise be mounted too far back, and it is the standard solution for AR-15 rifles with long-tube optics.
