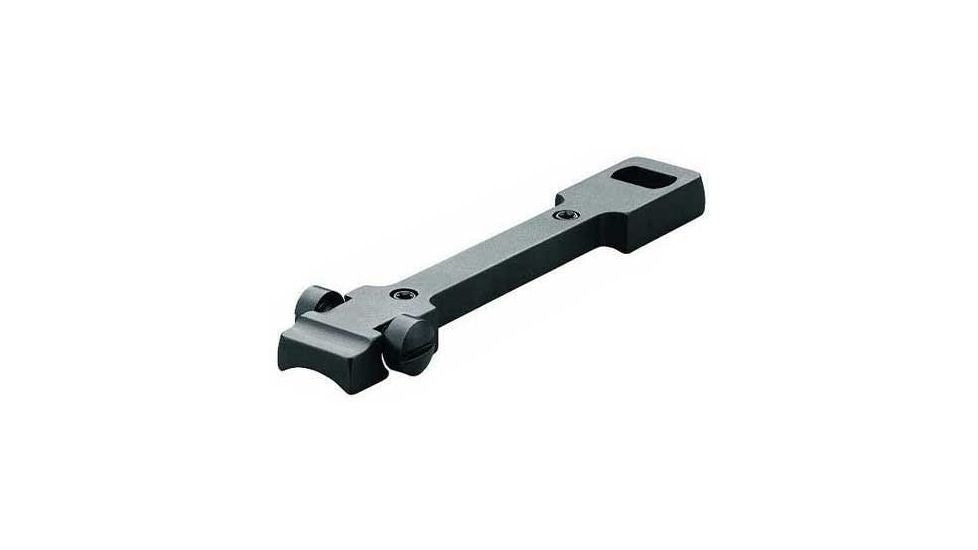

Leupold STD one-piece base for Winchester 70 long action, gloss black
The Leupold STD one-piece base is the interface between the Winchester 70 long action receiver and the rings holding the riflescope: it defines the position, height, and alignment of the optic, which determines zero retention under recoil and correct eye relief. It is a dedicated mount, machined to the weapon's specifications, which attaches to factory-drilled holes without any modifications. The gloss black finish matches the polished bluing of classic-style firearms.
On the Standard system, the front ring rests on a dovetail mount that rotates into place, while the rear ring is held by two opposing windage screws. During bore alignment, the windage screws allow for lateral centering of the optic without consuming the scope's internal adjustment range, which remains available for fine-tuning; for larger vertical corrections, Leupold recommends the use of shims, leaving the elevation turret free for ballistic compensation. The construction is steel, and the manufacturer recommends the STD system for standard calibers up to .300 Win. Mag. The stated torque settings are 22 in-lb for base-to-receiver screws and 45 in-lb for windage screws.
Main features
- Leupold STD mounting system
- Configuration: one-piece
- Material: steel
- Finish: gloss black
- Windage adjustment on the rear base via opposing screws
- Leupold torque settings: 22 in-lb for base/receiver screws, 45 in-lb for windage screws
- Required rings: Leupold STD rings
- Leupold item code: 50000
Recommended use
Leupold designates this item code for the following firearms:
- Winchester 70, 670, 770, and 70A long action
The mount is completed with Leupold STD rings, available for 1-inch and 30 mm tubes in low, medium, high, and super high heights: the height should be chosen based on the riflescope's objective lens diameter and barrel clearance.
Package contents
- 1 mounting base
- Receiver mounting screws
Rings and riflescope are not included: the system requires Leupold STD rings, which must be ordered separately in the correct diameter and height.
Manufacturer code: 50000
