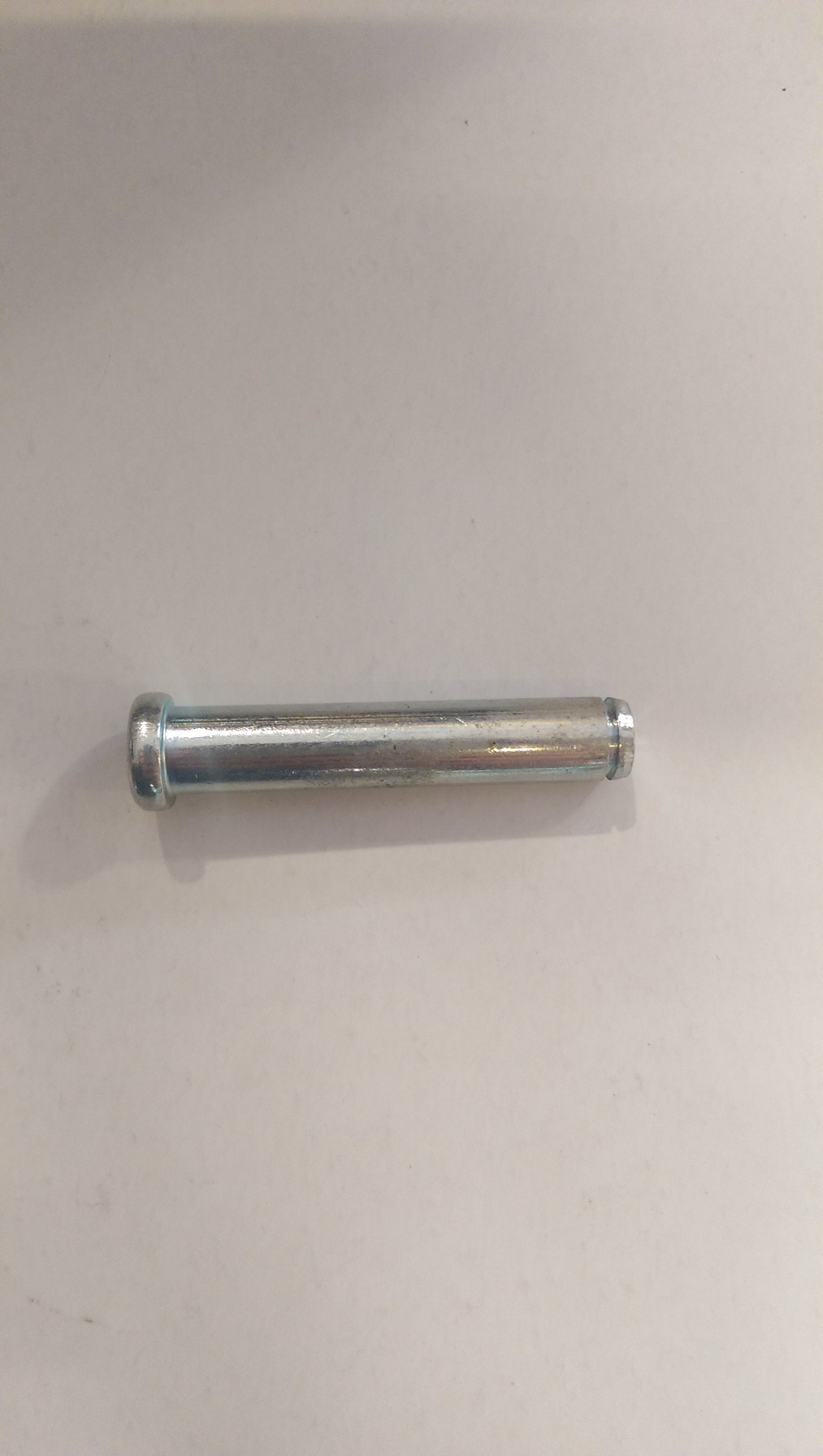

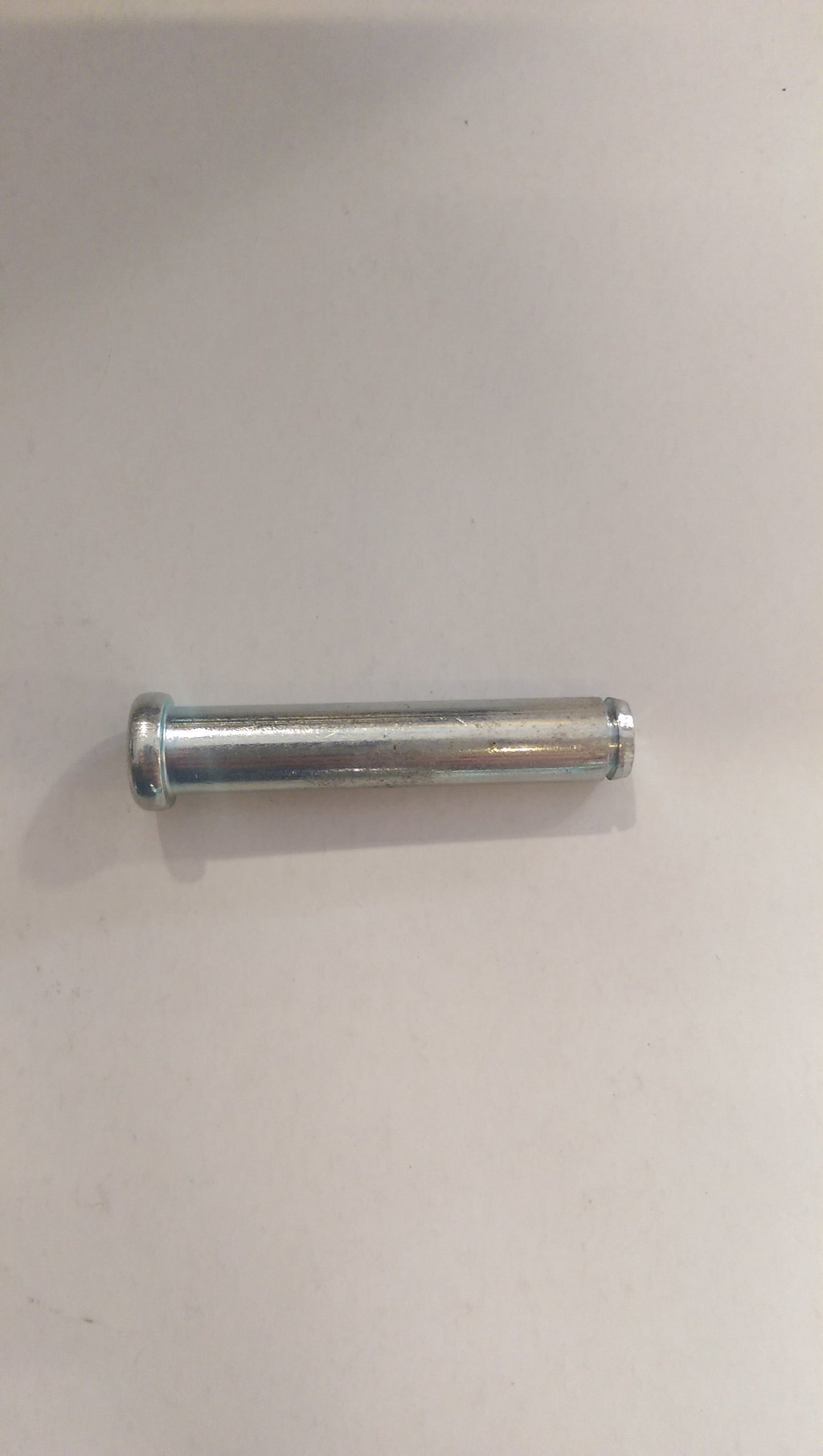

Lee Precision 3/8-24 link bolt for Breech Lock Challenger, Turret Press and Pro 1000 – TP2117

Lee Precision link bolt 3/8-24 – TP2117

Link bolt with 3/8-24 UNF thread, genuine Lee Precision spare part. Lee catalogs it as LINKBOLT 3/8-24X and describes it as a link bolt for the Breech Lock Challenger press, Turret Press models, and the Pro 1000 progressive press, with a required quantity of one piece.

The link bolt is the threaded pin that connects the linkage to the press ram: it transmits the lever's thrust to the ram and is subjected to alternating loads during every stroke. Excessive play in this connection results in a less rigid stroke and imprecise ram return, so the part should be replaced when the joint shows looseness. The part number is common to multiple Lee platforms and is listed in the spare parts category of the Breech Lock Challenger from 2008-2022.

Main features

• Thread: 3/8-24 UNF
• Type: link bolt, linkage pivot pin
• Quantity specified by Lee: 1 piece
• Lee part number common to multiple presses

Recommended use

Spare part for Lee Breech Lock Challenger (2008-2022), Turret Press, and Pro 1000 presses, subject to checking the part number on your press's official exploded view diagram.

Manufacturer part number: TP2117
