Lee Precision Case Length Gage with shellholder 35 Remington 90150
Lee Precision Case Length Gage with shellholder 35 Remington 90150
SKU:LEE.90150
In stock
Couldn't load pickup availability
- Shipping: Italy €12,00 · EU €29,00 · other countries at checkout
- 14-day right of withdrawal for consumers
- Secure payment: PayPal, credit card, bank transfer · no surcharge for PayPal or card

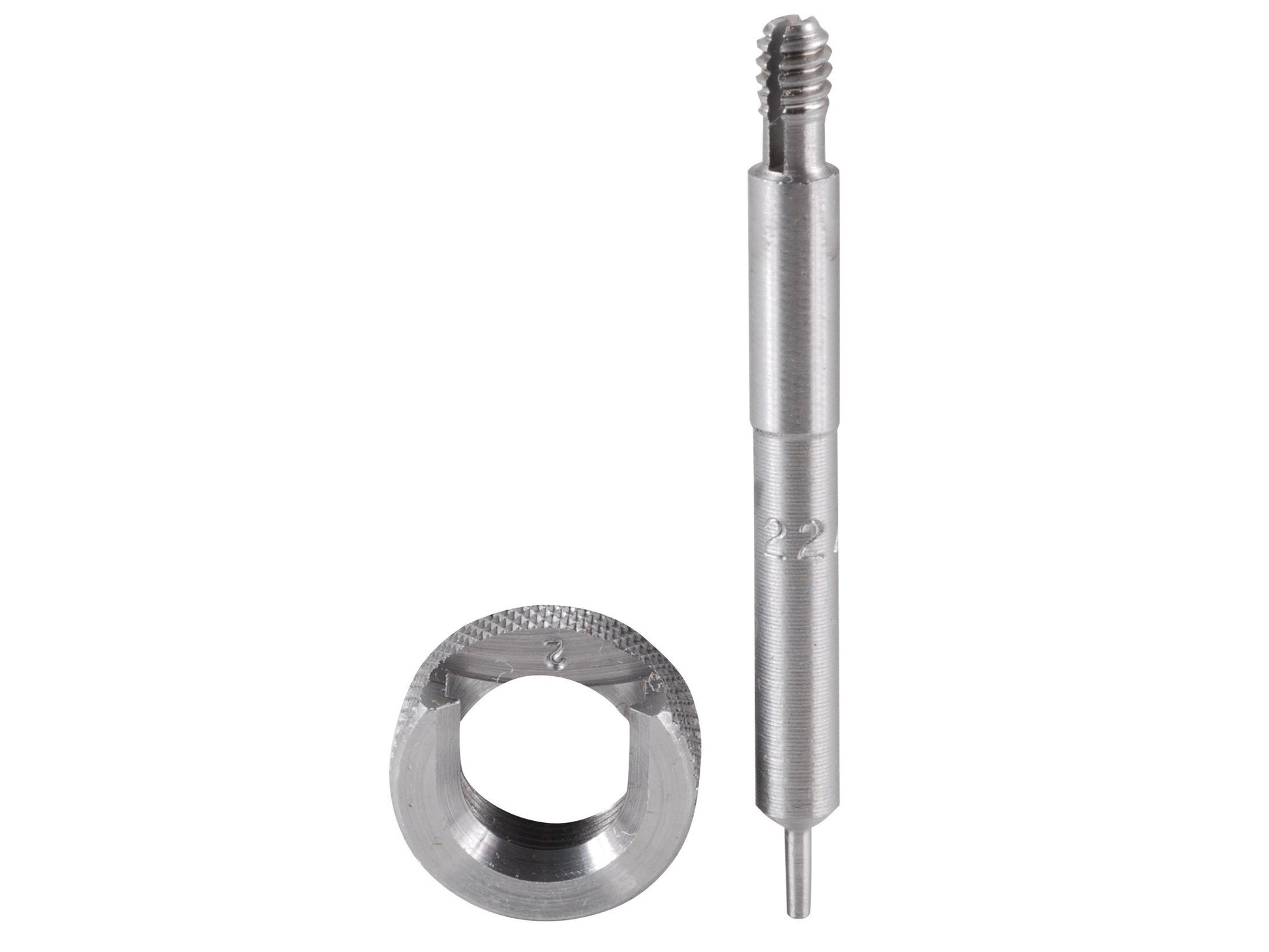

Lee Precision Case Length Gage and Shellholder 35 Remington 90150
The Case Length Gage and Shellholder is the assembly consisting of the length gage and the dedicated shellholder with which Lee Precision trims cases to size and squares the case mouth. This unit works on the 35 Remington: the trim length is determined by the geometry of the gage, so it does not depend on adjustments or operator readings and remains identical for the entire batch of cases.
The case is held by the shellholder while the cutting tool rests on the gage: the cut stops automatically when the case reaches the specified length. The assembly acts as a go/no-go gage: if the case is not cut, it means it is already within limits. Lee specifies a tolerance of +.000/-.015 inches for these units. Trimming is performed after full-length resizing, once the case has stretched: bringing it back to size prevents the mouth from contacting the cartridge chamber and keeps the crimp constant. The mouth is perpendicular to the case axis, a condition that affects bullet concentricity. The system is entirely mechanical and requires no calibration or maintenance.
Main features
- Length gage and shellholder dedicated to the 35 Remington
- Mechanical travel stop: repeatable length for the entire batch of cases
- Lee tolerance +.000/-.015 inches
- Works as a go/no-go gage: if the case is not cut, it is already sized
- Squares the case mouth perpendicular to the axis
- Requires no adjustments or calibration
Recommended use
The gage must be paired with a Lee cutting tool sold separately: Cutter and Lock Stud 90110, Cutter with Ball Grip and Lock Stud 90275, or the Deluxe Case Conditioning Combo 92160, which includes a cutter and lock stud, chamfer tool, primer pocket cleaner, and power grip shell holder. The Cutter and Lock Stud is universal, only one is needed for all cartridges with a bullet diameter of less than .475 inches, and it can be used by hand or with an electric drill. After trimming, it is advisable to chamfer and deburr the mouth with the Lee Chamfer Tool 90109.
Package contents
- Case Length Gage 35 Remington
- Dedicated shellholder
- Not included: cutting tool (Cutter and Lock Stud 90110 or equivalent)
Manufacturer code: 90150
