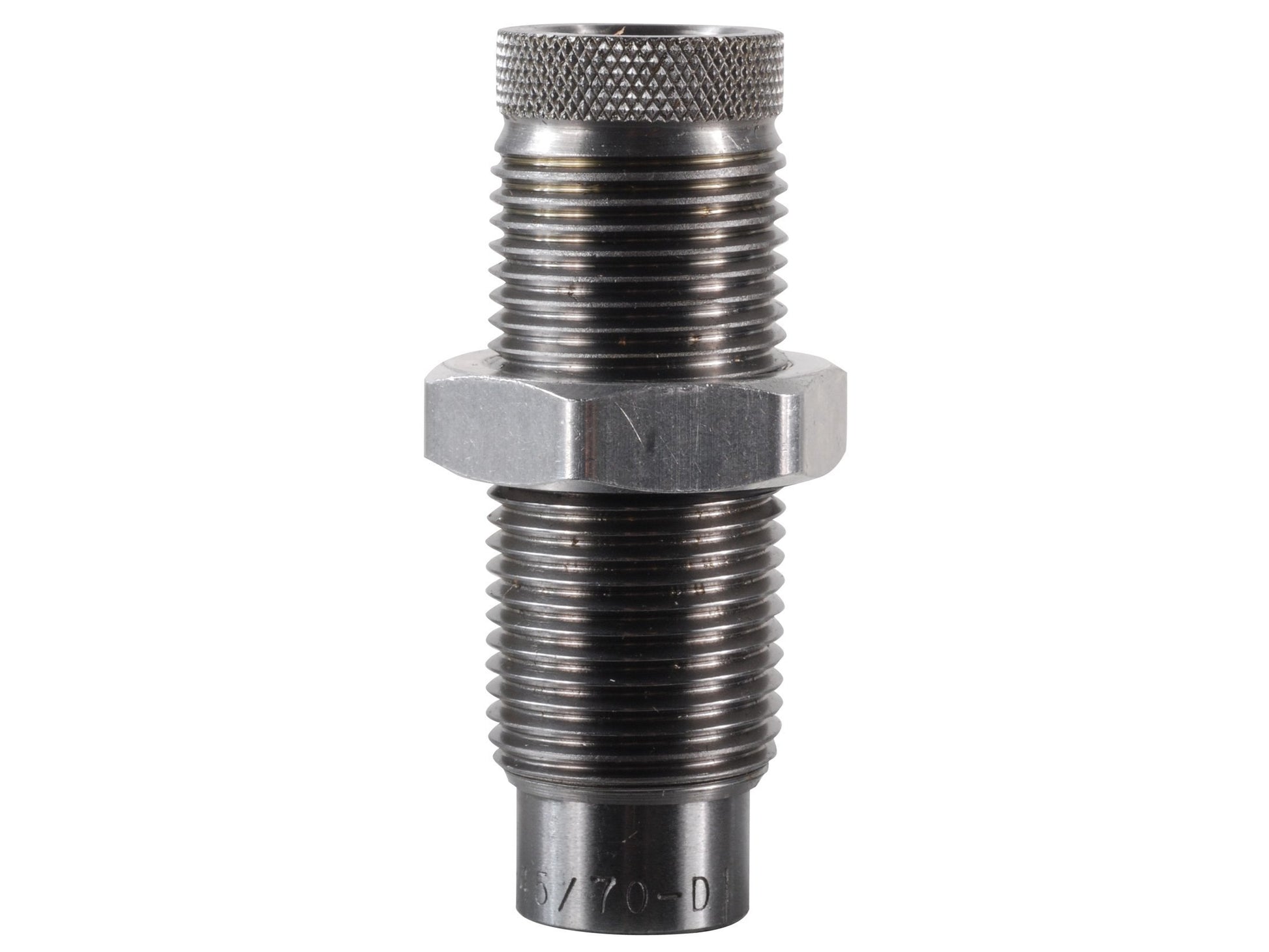

Lee Precision Factory Crimp Die 30 M1 Carbine

The Lee Precision Factory Crimp Die in 30 M1 Carbine caliber is a die dedicated solely to crimping the round, to be mounted as a separate station after the seating die. Separating the bullet seating from the crimping allows the two operations to be adjusted independently and is the standard choice for those reloading rifle cartridges for hunting and shooting, where the round must withstand recoil, the feeding cycle from the magazine, and handling.

The die works with a collet system: steel sectors close radially on the case neck and tighten the case onto the bullet with pressure distributed across the entire circumference. Since the crimp is created by the closing of the collet and not by contact between the case mouth and the die opening, the result remains repeatable even when cases are not all the same length, unlike the roll crimp obtained with the seating die. Lee states that a firm crimp increases the bullet start pressure, makes the pressure curve more uniform, and reduces velocity dispersion, and that the system also works with bullets without a cannelure. Lee also specifies the same die for the 32-20 Winchester.

Main features

  • Collet crimp-only die for rifle cartridges
  • Caliber: 30 M1 Carbine (7.62x33)
  • Uniform crimp around the entire circumference of the neck
  • Repeatable result even with cases of uneven length
  • Effective even with bullets without cannelures or crimping grooves
  • 7/8"-14 threaded body, standard for reloading presses
  • Crimp intensity adjustable by screwing the die body

Recommended use

It screws onto any reloading press with a standard 7/8"-14 thread, including Lee single-stage, turret, and progressive presses. It should be used as a stand-alone station after adjusting the seating die so that it does not crimp: the bullet is first seated to the desired depth and then crimped in a dedicated pass.

Package contents

The package contains the Factory Crimp Die complete with Spline Drive locking ring and instructions for use. The shell holder, resizing die, and seating die are not included, as they are part of Lee die sets or must be purchased separately.

Manufacturer code: 90421
