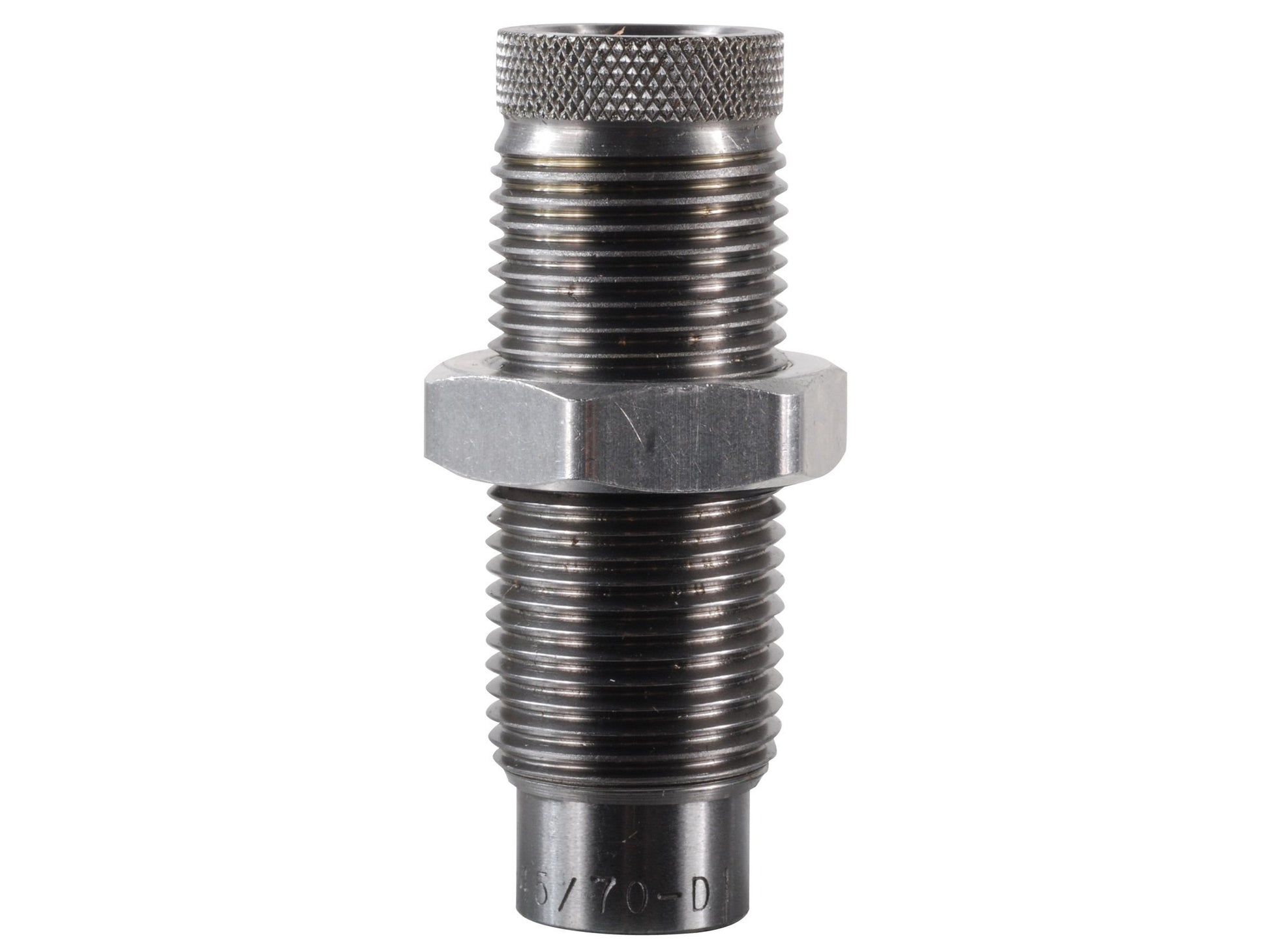

Lee Precision Factory Crimp Die 22 Hornet

Lee Precision Factory Crimp Die 22 Hornet

Regular price €21,00 EUR
Regular price Sale price €21,00 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU:LEE.90829

In stock

Quantity
4.9/5 on Trustpilot · over 1,000 reviews

Lee Precision Factory Crimp Die 22 Hornet

The Lee Precision Factory Crimp Die in .22 Hornet is a die dedicated solely to bullet crimping, to be installed as a separate station after the seating die. Separating bullet seating from crimping allows these two operations to be adjusted independently and is the standard choice for those reloading rifle cartridges for hunting and target shooting, where the round must withstand recoil, magazine feeding cycles, and handling.

The die utilizes a collet system: steel segments close radially on the case neck and secure the bullet with pressure distributed across the entire circumference. Since the crimp is created by the closing of the collet rather than by contact between the case mouth and the die opening, the result remains repeatable even when cases are not all of uniform length, unlike the roll crimp obtained with a seating die. Lee states that a firm crimp increases the bullet starting pressure, makes the pressure curve more uniform, and reduces velocity spread, and that the system works even with bullets lacking a cannelure. Lee also indicates this same die is suitable for .22 K Hornet and .221 Fireball.

Main features

  • Collet-style crimping-only die for rifle cartridges
  • Caliber: .22 Hornet
  • Uniform crimp around the entire neck circumference
  • Repeatable result even with cases of non-uniform length
  • Effective even with bullets without a cannelure or crimp groove
  • 7/8"-14 threaded body, standard for reloading presses
  • Crimping intensity adjustable by screwing the die body

Recommended use

It screws into any reloading press with a standard 7/8"-14 thread, including Lee single-stage, turret, and progressive presses. It must be used as a separate station after adjusting the seating die so that it does not crimp: the bullet is first seated to the desired depth and then crimped in a dedicated step.

Package contents

The package contains the Factory Crimp Die complete with a Spline Drive lock ring and operating instructions. The shell holder, sizing die, and seating die are not included, as they are part of Lee die sets or must be purchased separately.

Manufacturer code: 90829
