Lee Precision Decap Mandrel .262 for 6.5 Creedmoor and 6.5x55

Lee Precision Decap Mandrel .262" – 6.5 Creedmoor

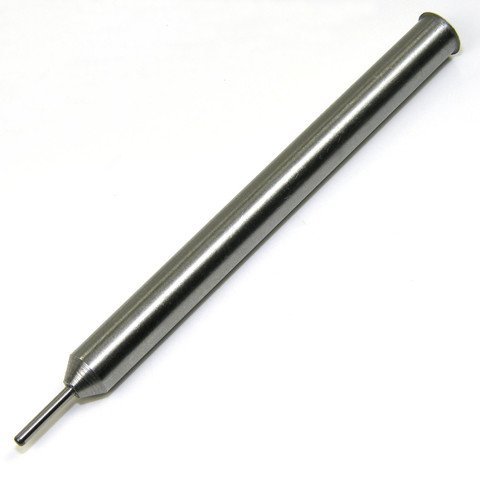

The Lee Precision Decap Mandrel is the decapping spindle for Lee collet neck sizing dies: it is the element against which the collet fingers squeeze the case neck, and, at the same time, it carries the pin that ejects the spent primer. This .262" version is the one specified by Lee for 6.5 Creedmoor, 6.5x55 Swedish Mauser, 260 Remington, 6.5 Grendel, and 6.5 PRC, and it should be replaced when the pin bends or the mandrel becomes worn.

In the collet die, the neck is not compressed by an outer ring and then opened back up by an expander, as in full-length dies: four fingers squeeze it directly against the mandrel, so it is the diameter of the mandrel that determines the final internal measurement of the neck. For this reason, Lee makes the mandrels .002" to .003" under the nominal bullet diameter: with a brass spring-back of .001"–.002", the finished neck remains approximately .001" under bullet diameter, which is the correct tension to hold it. Lee describes this system as being capable of producing a precisely aligned neck, reducing runout.

Main features

• Lee designation: DECAP MANDREL .262"
• Mandrel diameter: .262"
• Lee design undersize: .002" to .003" under the nominal bullet diameter
• Dual function: internal collet sizing reference and decapping
• Quantity specified by Lee: 1 piece per die
• Calibers indicated by Lee: 6.5 Creedmoor, 6.5x55 Swedish Mauser, 260 Remington, 6.5 Grendel, 6.5 PRC

Recommended use

Replacement part for Lee collet neck sizing dies — Collet Neck Sizing, Micrometer Neck Sizing, and Ultimate Die Set — in 6.5 Creedmoor, 6.5x55 Swedish Mauser, 260 Remington, 6.5 Grendel, and 6.5 PRC calibers. Lee lists it among the spare parts for the 6.5x55 Micrometer Neck Sizing Die Set (code 90712) and the 6.5 Creedmoor Ultimate Rifle Die Set (code 90939).

Package contents

The spare part is supplied individually and includes only the decapping mandrel. The die body, collet assembly, and other die components are not included.

Manufacturer code: NS2624
