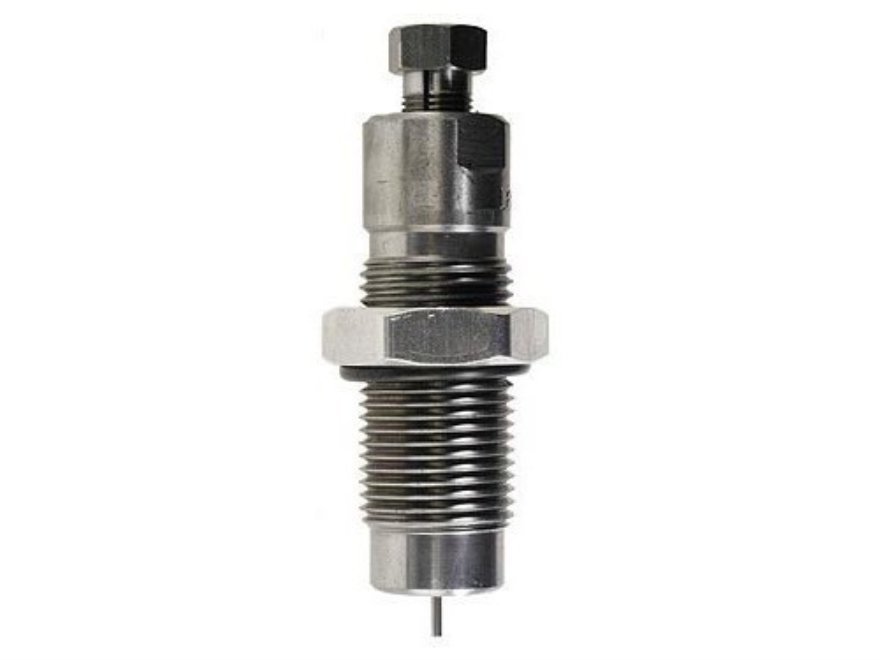

Lee Precision Carbide Sizing Die 9mm Luger

Lee Precision Carbide Sizing Die 9mm Luger

The Lee Precision Carbide Sizing Die in 9mm Luger (9x19 Parabellum) is the single die that performs the first operation of the reloading cycle: it returns the case to the correct dimensions and extracts the spent primer. It is the resizing die to purchase separately to complete a die set, to replace a worn component, or to equip a second press without buying an entire die set.

The internal tungsten carbide ring works the case wall without steel-on-brass contact: for this reason, with straight-walled cases, lubrication is not necessary, eliminating the subsequent degreasing phase and significantly reducing die wear. Compared to a steel resizing die, which instead requires the use of case lube, the carbide die is the fastest and cleanest solution for volume reloading of pistol and revolver ammunition. The body is threaded 7/8"-14, the standard adopted by Lee and almost all reloading presses.

Main features

• Single resizing die with carbide ring
• Caliber: 9mm Luger (9x19 Parabellum)
• Does not require case lubrication
• Performs resizing and depriming simultaneously
• Standard 7/8"-14 thread

Recommended use

It screws into any 7/8"-14 threaded reloading press, whether single-stage, turret, or progressive. It must be mounted in the first workstation and adjusted according to the Lee Precision instructions. To complete the cycle, you will need to purchase the expansion/powder-through and seating dies separately, as well as the shell holder corresponding to the caliber.

Package contents

One carbide resizing die with depriming rod. The other dies in the set, the shell holder, and any accessories shown are not included.

Manufacturer code: 90548
