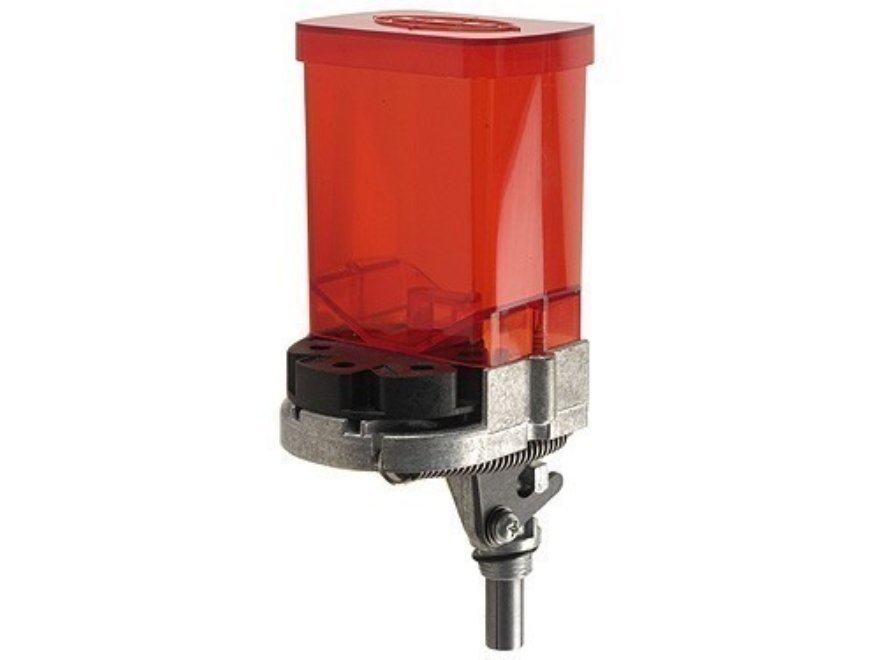

The Auto-Disk is the base version of Lee Precision's disk-based powder measure: it screws onto the Powder Through Expanding Die and is operated by the casing rising into the station, releasing a repeatable powder charge with every cycle. It is the most direct way to automate powder charging on a press already equipped with Lee dies.
The dosing is purely volumetric and depends on the charge disk inserted: the series includes four disks, A, B, C, and D, which Lee catalogs as a single spare part, 91961. The return of the slider is handled by a spring (spare part AD2296) and the seal on the body is guaranteed by the 016 O-ring with a 5/8" inner diameter (AD2299). Compared to the Pro Auto-Disk, which features a Teflon-coated metal cast body, an enlarged hopper with a shut-off valve, and a swivel adapter, this version maintains a simpler construction. Lee has ceased production of the 90578 model, and the availability of some spare parts, starting with the hopper, is now exhausted.
Main features
Casing-actuated disk powder measure
Volumetric dosing with charge disks A, B, C, and D
Spring-loaded slider return (spare part AD2296)
Dedicated drop tube (spare part AD2307)
016 5/8" sealing O-ring (spare part AD2299)
Discontinued model, spare parts running out
Recommended use
Automatic powder charging in combination with Lee Powder Through Expanding Dies and related charging funnels. With the Double Disk Kit 90195, sold separately, it is possible to stack two disks and expand the dosing range.
