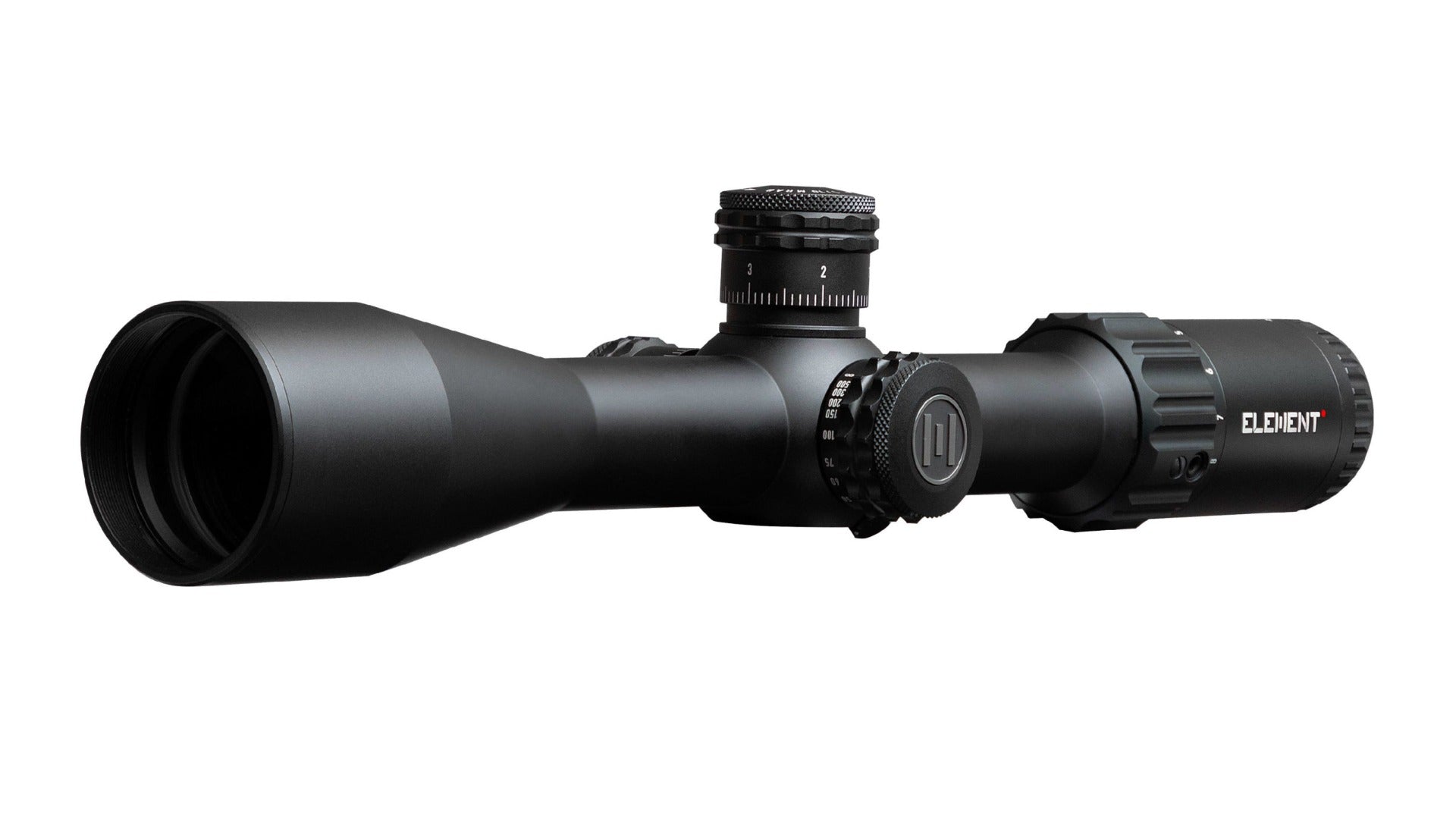

Element Optics Helix 4-16×44 FFP APR-2D MRAD Riflescope

Element Optics Helix 4-16×44 FFP APR-2D MRAD Riflescope

The Element Optics Helix 4-16×44 FFP APR-2D MRAD is a first-series Helix riflescope with a first focal plane (FFP) reticle, 30 mm tube and 44 mm objective. The FFP reticle keeps its subtensions true at any magnification, so ranging, elevation holds and windage holds remain reliable both at 4× and at full zoom.

The tool-free turrets are reset by hand and use stainless steel internals, 0.1 MRAD clicks (6 MRAD per revolution) and a hard mechanical zero stop that lets you return to zero without looking at the turret. The side parallax adjusts from 15 m to infinity. The APR-2D is the most complete reticle of the APR family: on top of the MRAD scale on both axes it adds a "christmas tree" grid below the centre with windage dots, ideal for holdover shooting without touching the turrets.

Key features

• Magnification: 4-16×
• Objective lens diameter: 44 mm
• Main tube: 30 mm
• Focal plane: first focal plane (FFP)
• Reticle: APR-2D MRAD
• Click value: 0.1 MRAD (6 MRAD per revolution)
• Elevation adjustment range: 23.3 MRAD
• Windage adjustment range: 13.1 MRAD
• Parallax: side focus, 15 m to infinity
• Eye relief: 94-107 mm
• Field of view: 8.8-2.2 m at 100 m
• Length: 360 mm
• Weight: 675 g
• Tool-free resettable turrets with stainless steel internals
• Hard mechanical zero stop
• Removable magnification throw lever
• Fully multi-coated lenses
• Aircraft-grade aluminium; waterproof, fogproof, shockproof and nitrogen purged

Recommended use

Medium-range precision shooting with centrefire and rimfire rifles, PRS-style matches with lighter rifles, target shooting and selective hunting. The 4× low end and modest weight also suit compact platforms.

What's in the box

• Riflescope
• Sunshade
• Lens cloth
• Rubber lens caps

Rings/mounts not included (30 mm rings required).

Focal plane: FFP – Tube: 30 mm – Brand: Element Optics
