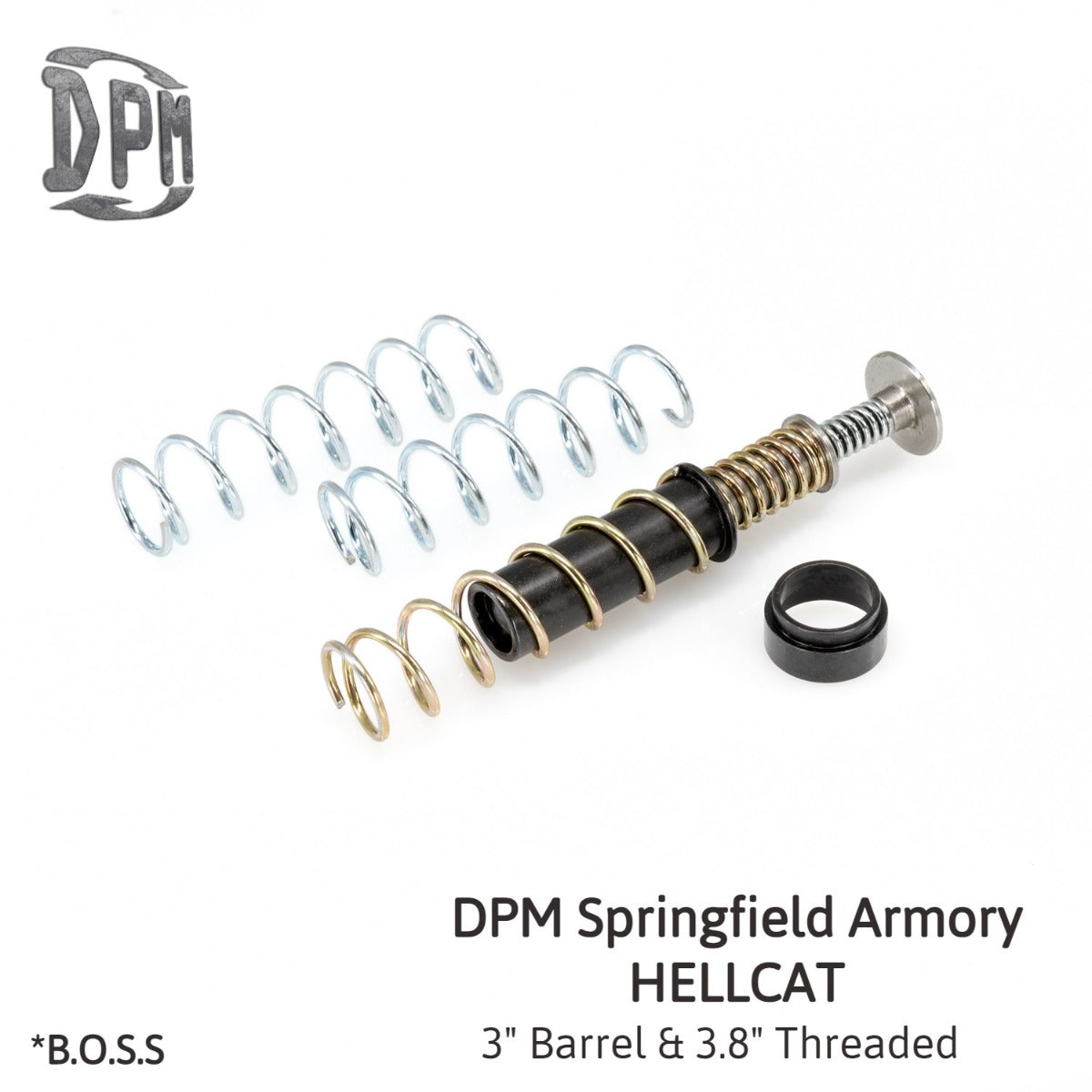

DPM Recoil Reduction System for Springfield Armory Hellcat 3″ and 3.8″ threaded

DPM recoil reduction system for Springfield Armory Hellcat

The DPM MS-SPR/13 system replaces the original recoil rod of the 3″ barrel Springfield Armory Hellcat, the 3.8″ threaded barrel version, and the RDP configuration with compensator. On a micro-compact carry pistol, recoil reduction translates into faster target re-acquisition and less stress on the frame.

Operation is based on the DPM patented multi-spring recoil rod: three coaxial springs of increasing tension work inside the rod, and the third internal spring only engages during the final stage of the slide travel, ensuring the slide never slams against the frame. The three included external springs cover a range from 10 to 12 lb closed and 16 to 20 lb slide fully open, allowing the system to be calibrated to the specific load used.

Main features

• Compatible with Springfield Armory Hellcat 3″ barrel, Hellcat 3.8″ threaded barrel, and Hellcat RDP with compensator
• 9mm and .380 ACP calibers
• Short spring: 10 lb in battery, approx. 16 lb slide open
• Medium spring: 11 lb in battery, approx. 18 lb slide open
• Long spring: 12 lb in battery, approx. 20 lb slide open
• Multi-spring rod with third internal end-of-stroke spring
• Made in Greece (EU)

Recommended use

Direct replacement of the factory recoil rod, with no modifications to the firearm. The lighter setting is recommended for underpowered ammunition, the stiffer one for factory loads and the RDP configuration with compensator.

Manufacturer code: MS-SPR/13
