Dillon Precision link arm for Square Deal B – 13822

Dillon Precision link arm for Square Deal B – 13822

Regular price €39,90 EUR
Regular price Sale price €39,90 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU:DIL.13822

Out of stock

Quantity
4.9/5 on Trustpilot · over 1,000 reviews

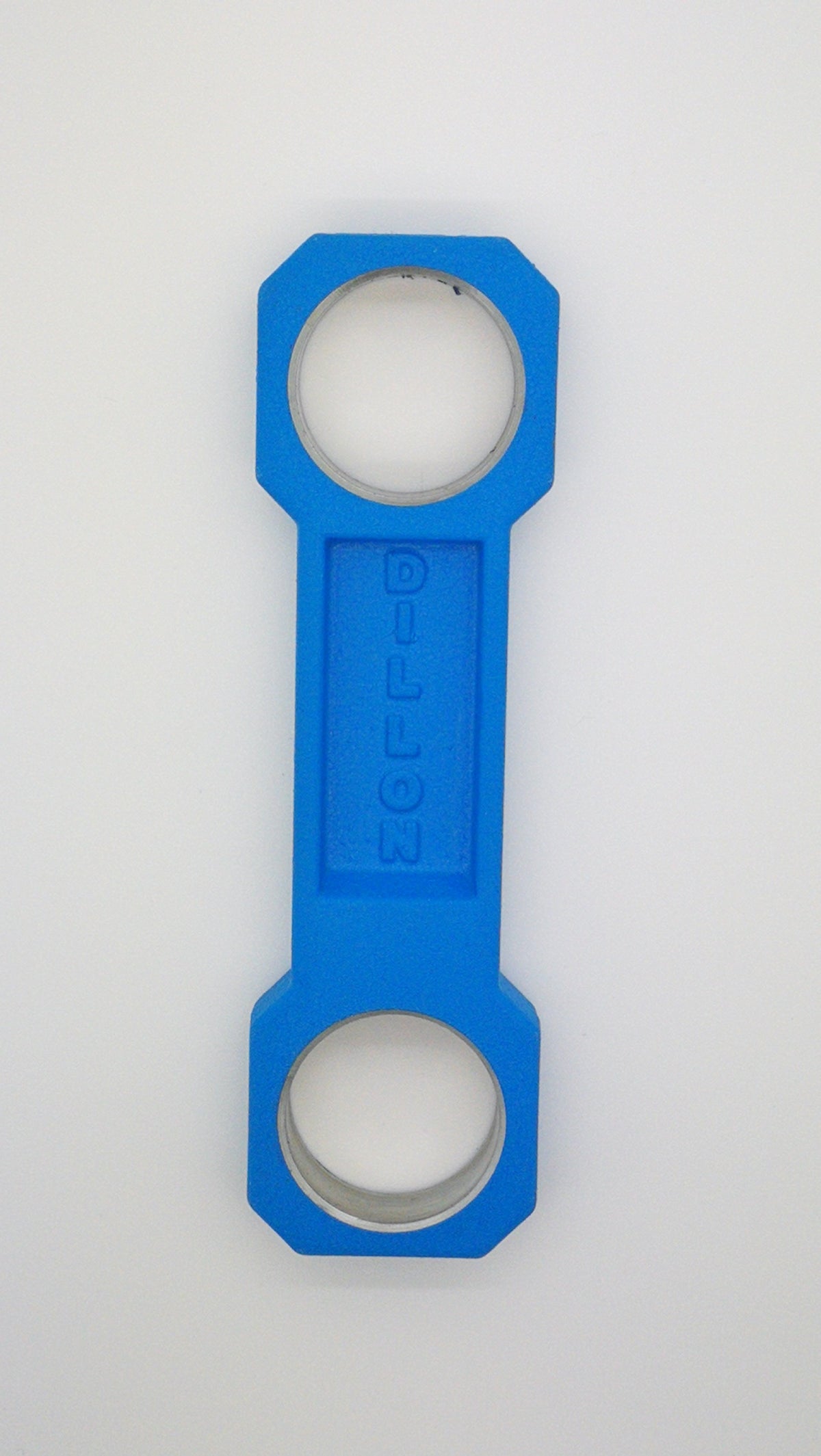

Dillon Precision Link Arm Square Deal B – 13822

The 13822 Link Arm is the connecting rod for the Dillon Square Deal B progressive press linkage. Dillon lists it in the Frame & Lower Assy, on page 50 of the Square Deal B manual.

The connecting rod links the lever to the crank assembly and transmits all the pressing force: it operates on the 18077 brass bushing and the 13622 crank pin, secured by the 13718 set screw, and is paired with the dedicated 13828 washer. Play in the lever stroke or noise under load indicate wear in this chain of components.

Main features

  • Original Dillon Precision spare part
  • Official designation: Link Arm
  • Assembly: Square Deal B Frame & Lower Assy (manual page 50)
  • Components paired in the exploded view: Link Arm Washer 13828, Brass Link Arm Bearing 18077, Crank Pin 13622
  • Compatibility stated by Dillon: Square Deal B

Recommended use

Overhauling the lever linkage on a Dillon Square Deal B progressive press. Dillon lists this part number in the Square Deal B exploded view and not among the parts for the RL550, XL650, or XL750.

Manufacturer part number: 13822
