Dillon Precision #10 stainless steel washer for XL 650 and XL 750

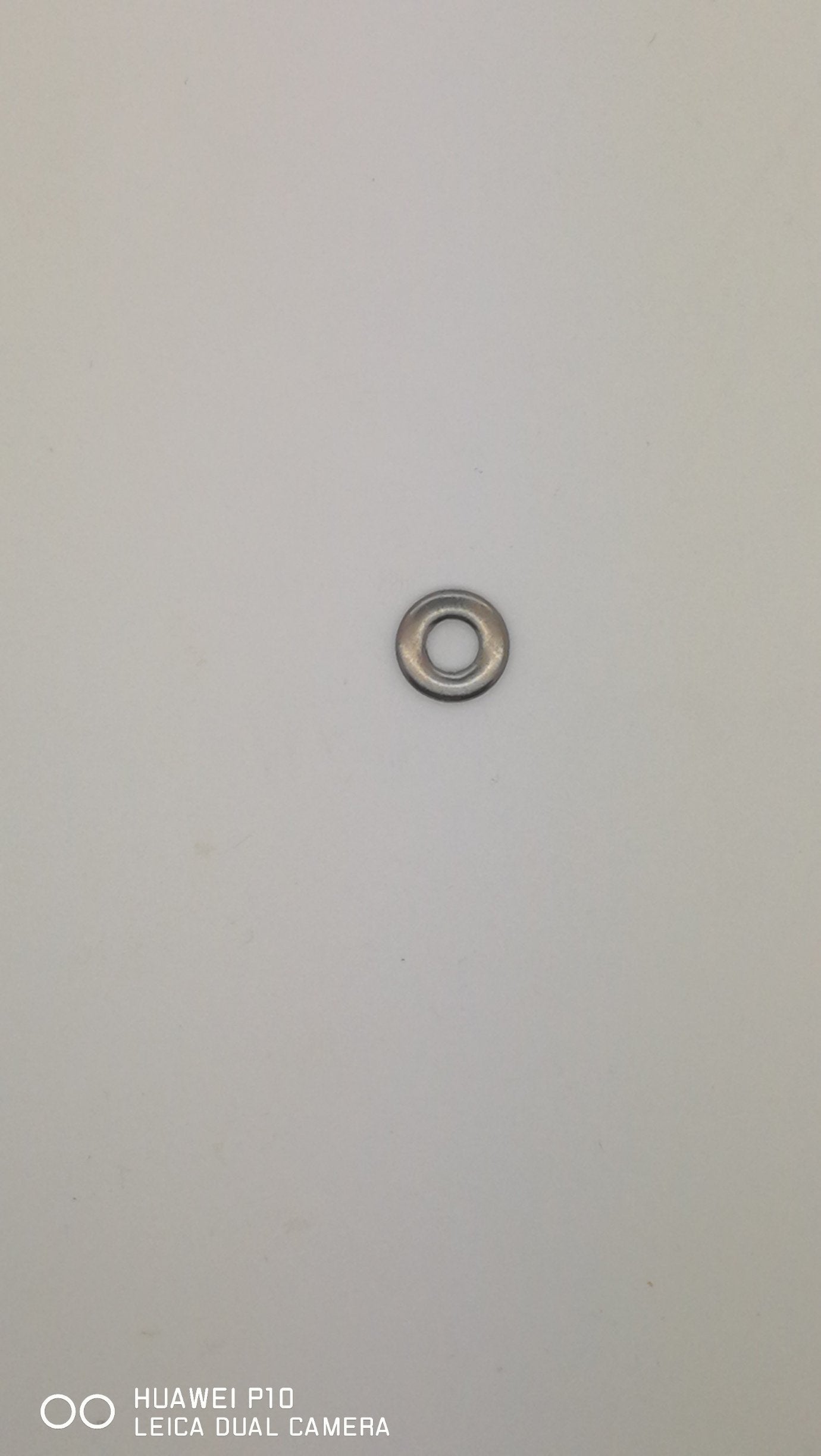

Dillon Precision #10 stainless steel washer

The #10 stainless steel washer is a genuine Dillon Precision fastener found in multiple locations on the XL 650 and XL 750 progressive presses. It accompanies the screws that secure moving parts and distributes the load over the bearing surface, preventing the screw head from working directly against the aluminum.

In the official Dillon exploded views, part number 13738 appears in the machine assembly (page 48 of the manual) and the platform assembly (page 52) of the XL 650, in the XL 650 casefeeder assembly (page 55), and, on the XL 750, in the primer feed body (page 57) and the casefeeder bowl (page 66). The stainless steel keeps the washer stable even in areas exposed to powder residue and lubricant.

Main features

• #10 stainless steel flat washer
• Genuine Dillon Precision spare part
• Used in multiple assemblies of the XL 650 and XL 750 presses

Recommended use

Replacement of the original washer on Dillon XL 650 and XL 750 progressive presses during maintenance of the machine assembly, platform, primer feed body, or casefeeder. Dillon does not list this part number for the Square Deal B, which uses the #10 washer with code 14157 in its exploded views.

Manufacturer code: 13738
