Dillon Precision platform roller pin for RL 550 and XL 750

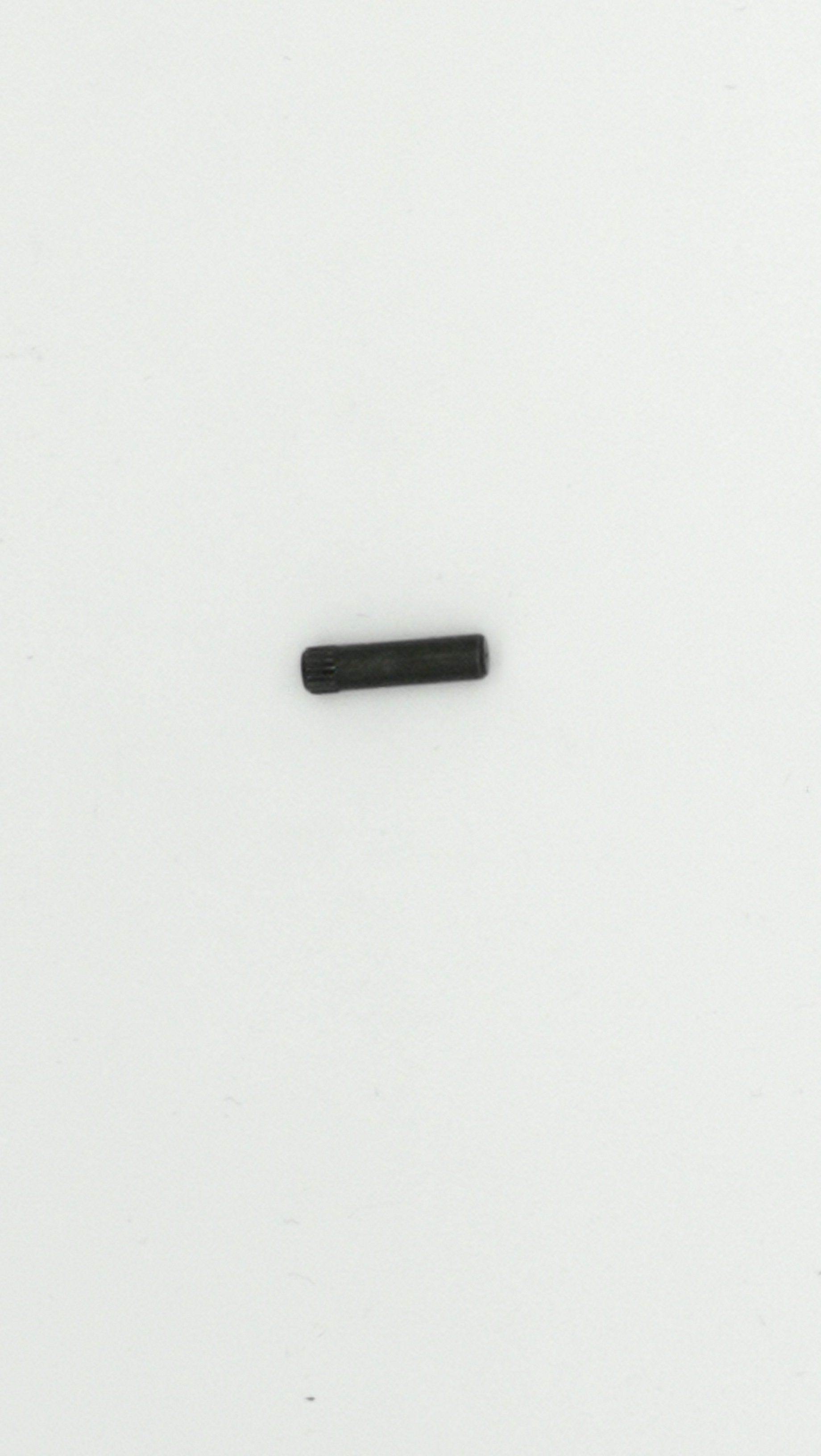

Dillon Precision platform roller pin

The platform roller pin is the pin on which the platform assembly roller rotates. The roller runs on the cam and converts the lever stroke into the movement of the press linkage: the pin defines its axis and absorbs the load during every cycle.

Dillon lists part number 14001 as the "Platform Roller Pin" in the platform assembly of the RL 550 (page 63 of the manual) and the XL 750 (page 61), alongside the small roller 13765, the roller bracket 14280, and the bracket screw 14530.

Main features

• Platform assembly roller pin
• Original Dillon Precision replacement part
• Listed for RL 550 and XL 750

Recommended use

Replacing the pin during the overhaul of the platform roller assembly on Dillon RL 550 and XL 750 presses. The roller, Dillon part number 13765, is not included.

Manufacturer part number: 14001
