Dillon Precision Operating Rod Bracket RL550 and XL750 – 13887

Dillon Precision Operating Rod Bracket – 13887

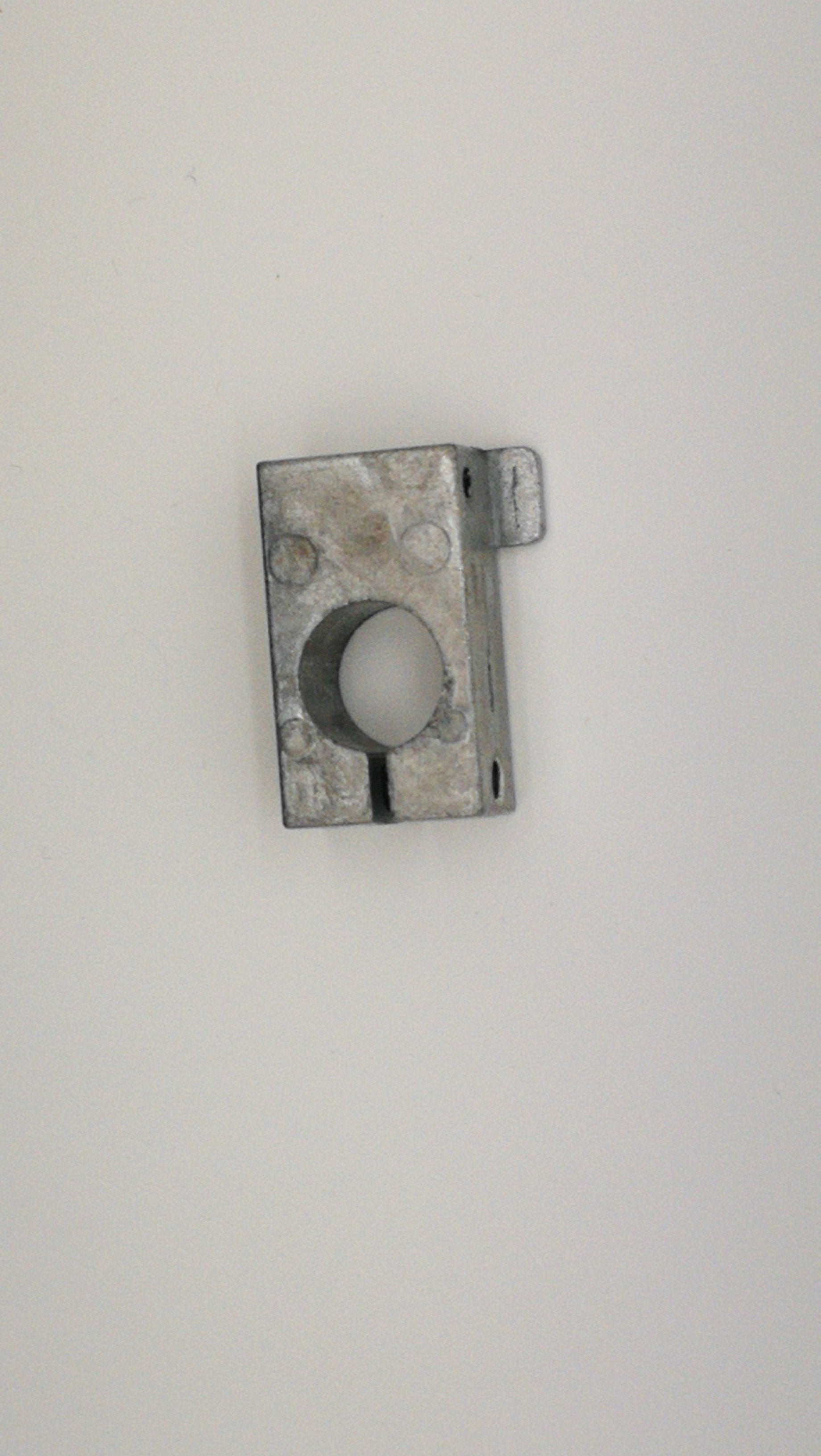

The 13887 Operating Rod Bracket is the bracket that guides the primer system operating rod. Dillon lists it in the RL550 Primer Feed Assembly (page 64 of the manual) and the XL750 Primer Feed Body Assy (page 57).

The bracket keeps the operating rod aligned with the feed body: on the RL550, it works with the 13869 Operating Rod; on the XL750, it works with the 62330 rod and the 13820 8-32 set screw used to lock the adjustment. A bracket with an ovalized hole allows the rod to wobble, leading to inconsistent primer feeding.

Main features

• Original Dillon Precision spare part
• Official designation: Operating Rod Bracket
• Listed for RL550 (manual page 64) and XL750 (manual page 57)
• Function: guides and supports the primer operating rod
• Compatible components: 13869 Operating Rod on RL550, 62330 Operating Rod and 13820 set screw on XL750

Recommended use

Maintenance of the primer feed assembly on Dillon RL550 and XL750 presses.

Manufacturer code: 13887
