Dillon Precision 8-32 x 1/4 BHCS screw XL650 – 14689

Dillon Precision 8-32 x 1/4 BHCS – 14689

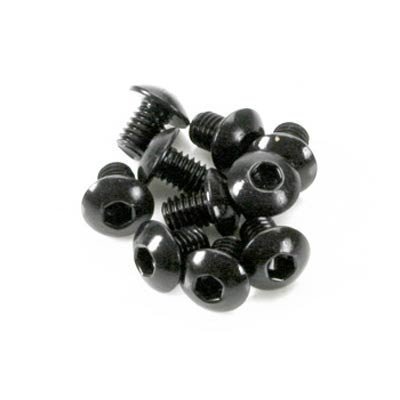

Dillon identifies part number 14689 as an 8-32 x 1/4 button head cap screw (BHCS). It appears in the Platform Assy of the XL650 progressive press, on page 52 of the manual.

The XL650 Platform Assy is the assembly that carries the shellplate, detent, and indexing system; the short button head screw is used where the head must not protrude or interfere with moving parts. In the exploded view on page 52, the screw is listed along with the spent primer cup bracket 16209 and the corresponding Spent Primer Cup 16211.

Main features

• Genuine Dillon Precision spare part
• 8-32 thread, 1/4" length, BHCS button head
• Assembly: XL650 Platform Assy (manual page 52)
• Associated components: Spent Primer Cup Bracket 16209, Spent Primer Cup 16211

Recommended use

Replacement hardware for the platform assembly of the Dillon XL650 progressive press.

Manufacturer part number: 14689
