Dillon Precision locator button #6 RL550 and Square Deal B – 15755

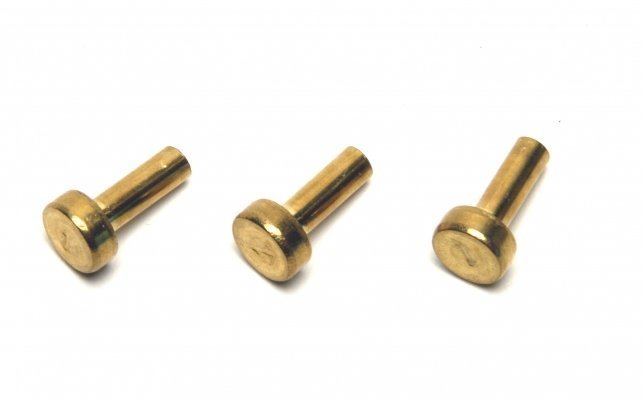

Dillon Precision Locator Button #6 – 15755

The 15755 is the Dillon number 6 Locator Button. Dillon lists it among the locator buttons for the RL550 platform group (page 63 of the manual) and the Square Deal B Frame & Lower Assy (page 50).

The locator button is the spring-loaded pin that keeps the cartridge case seated in its station during shellplate rotation: the number identifies the head diameter and, therefore, the group of calibers on which it is mounted. Dillon numbers the series from #1 to #8, and the locators are mounted in pairs on the platform stations.

Main features

• Original Dillon Precision spare part
• Official designation: Locator Button #6
• Listed in RL550 (page 63) and Square Deal B (page 50) exploded view diagrams
• Function: keeps the cartridge case in position in the shellplate station
• Dillon series: locator buttons numbered #1 to #8

Recommended use

Replacement of #6 locator buttons on Dillon RL550 and Square Deal B presses. The locator number must be matched to the caliber and shellplate in use.

Manufacturer code: 15755
