Dillon Precision locator button #4 for shellplate

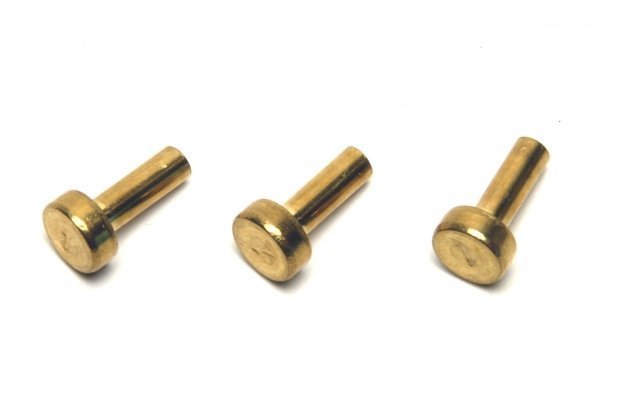

Dillon Precision locator button #4

Locator buttons are the spring-loaded plungers that hold the case against the shellplate during all stages of the reloading process. They prevent the case from rising or shifting under the pressure of the dies, maintaining the alignment necessary for proper resizing and bullet seating.

Dillon identifies locator buttons with a number linked to the cartridge rim size: number 4 corresponds to part number 14047 and appears in the platform assembly diagrams for the Square Deal B (page 50 of the manual), the RL 550 (page 63), and the XL 750 (page 61). The series also includes numbers 1, 2, 3, 6, 7, and 8, each with their own part numbers.

Main features

• Dillon number 4 locator button
• Genuine Dillon Precision spare part
• Listed for Square Deal B, RL 550, XL 650, and XL 750

Recommended use

Replacement or reconfiguration of locator buttons during caliber changes on Dillon progressive presses. To identify the correct number for your caliber, refer to the caliber conversion chart published by Dillon.

Manufacturer part number: 14047
