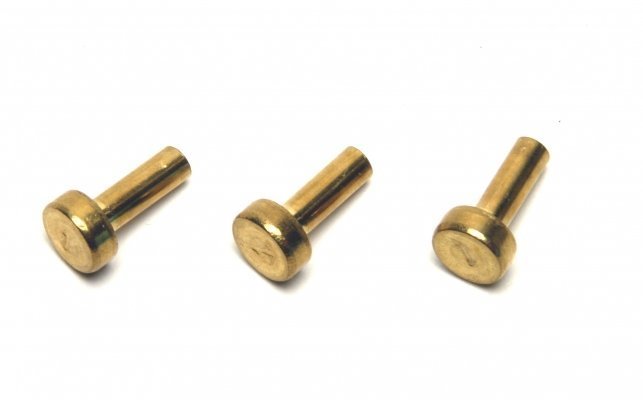

Dillon Precision locator button #1 for shellplate

Dillon Precision locator button #1

Locator buttons are the spring-loaded pins that hold the case against the shellplate while the press is in operation. They prevent the case from shifting or lifting during resizing, powder charging, and bullet seating, and they are responsible for centering the case under the die.

Dillon numbers locator buttons by case head size group and lists them in the platform assembly diagrams for the Square Deal B (page 50 of the manual), RL 550 (page 63), and XL 750 (page 61): number 1 corresponds to part number 13930. The group also includes numbers 2, 3, 4, 6, 7, and 8, with distinct part numbers, and the choice depends on the caliber being processed.

Main features

• Dillon locator button number 1
• Genuine Dillon Precision spare part
• Listed for Square Deal B, RL 550, XL 650, and XL 750

Recommended use

Replacement or reconfiguration of locator buttons when changing calibers on Dillon progressive presses. To determine the correct locator number for your caliber, refer to the caliber conversion chart published by Dillon.

Manufacturer part number: 13930
