Dillon Precision XL650 Indexer Block – 16776

Dillon Precision Indexer Block XL650 – 16776

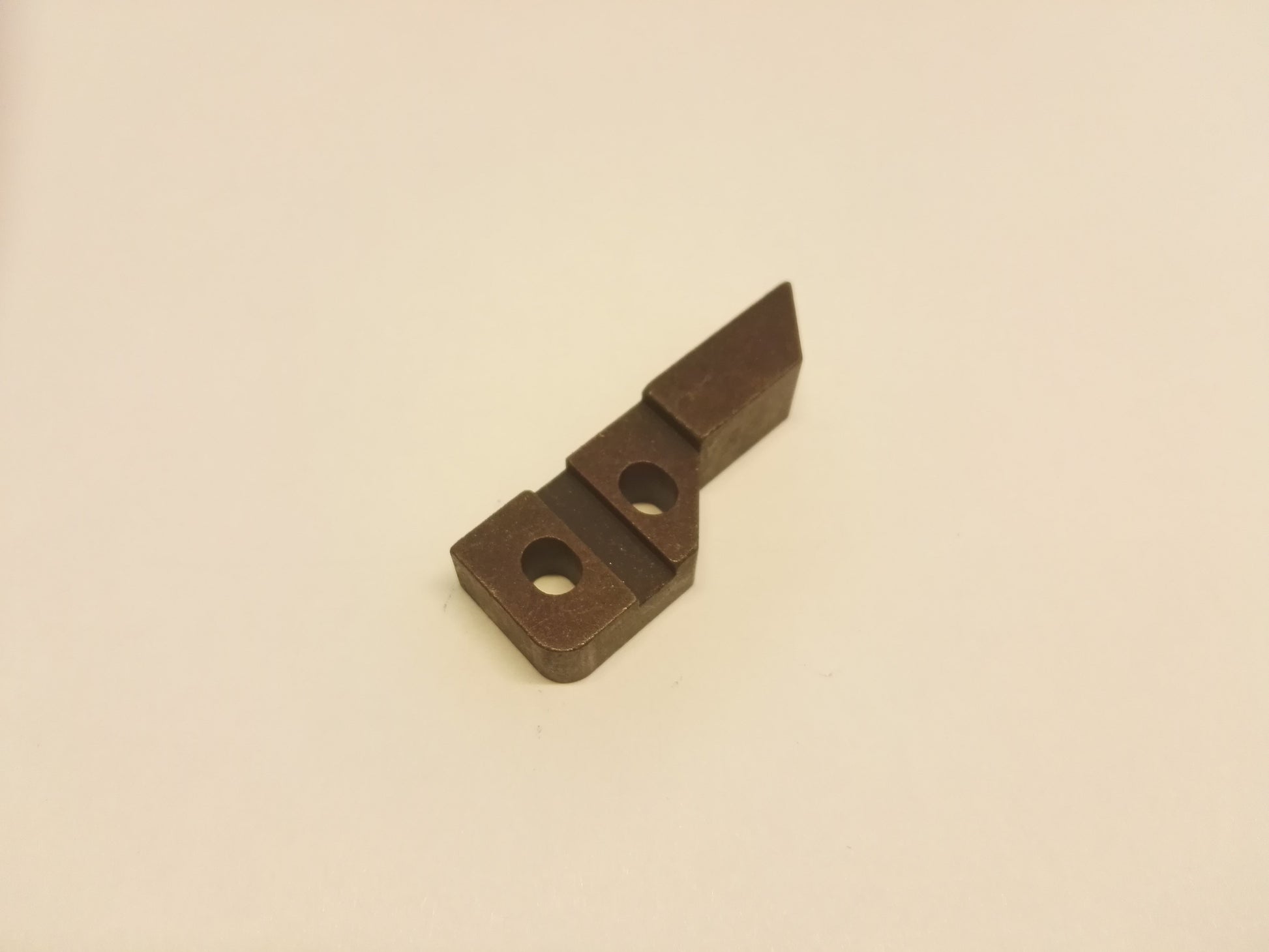

The 16776 Indexer Block is the indexer block for the Dillon XL650 progressive press. Dillon lists it in the Machine Assy, on page 48 of the XL650 manual, at the heart of the machine's linkage.

The block is the element that translates the movement of the linkage into an indexing command: it works on the main shaft, in combination with the link arm 14922 and the lower link arm pin 13700. Play in the block results in the shellplate advancing and not stopping exactly at the station.

Main features

• Original Dillon Precision spare part
• Official name: Indexer Block
• Assembly: XL650 Machine Assy (manual page 48)
• Matched components: Link Arm 14922, Lower Link Arm Pin 13700
• Compatibility stated by Dillon: XL650 press

Recommended use

Overhaul of the indexing linkage on the Dillon XL650 progressive press.

Manufacturer part number: 16776
