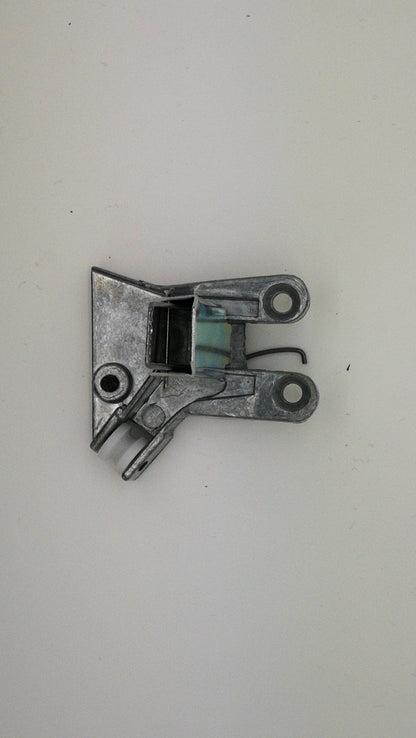

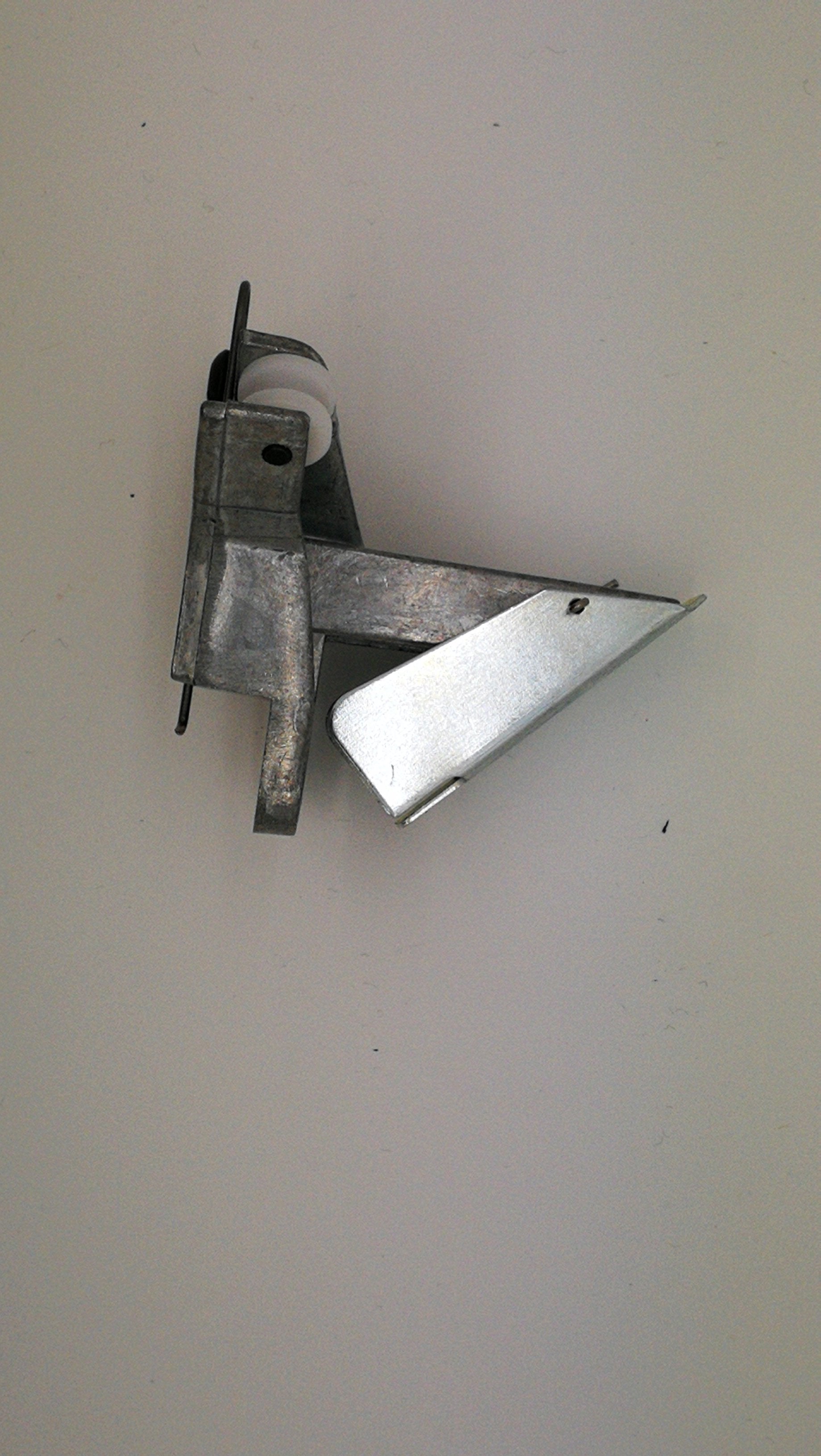

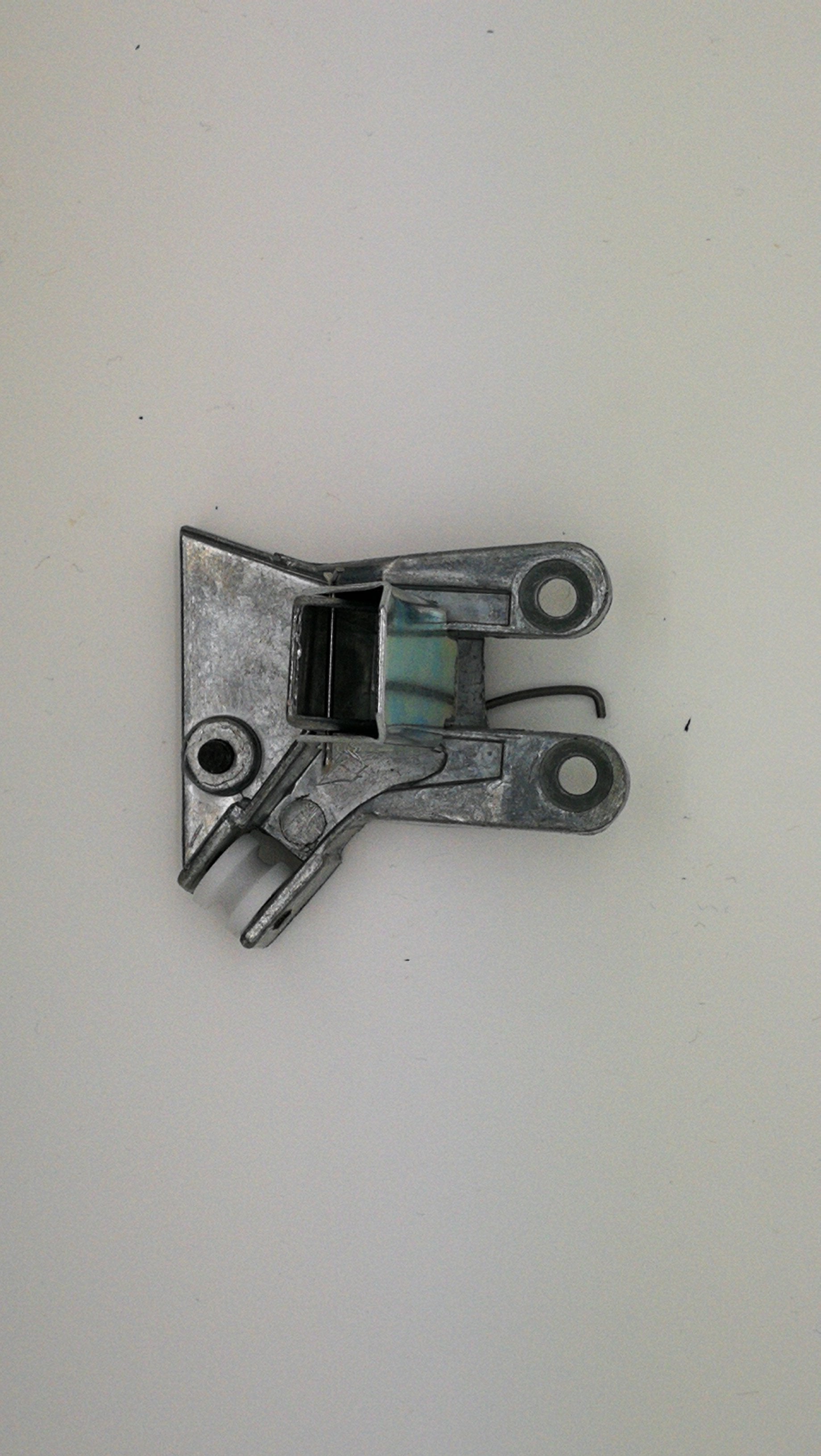

Dillon Precision roller handle assembly for RL 550

Dillon Precision roller bracket assembly

The roller bracket assembly is the bracket complete with a roller that operates under the RL 550 platform. The roller rests on the cam and transfers the movement of the lever to the press linkage, determining the progression with which the platform rises towards the dies.

Dillon lists part number 14280 as "Roller Bracket assy" in the RL 550 platform group, page 63 of the manual, and as "Roller Bracket Assembly" in the parts list of the RL 550B manual. The bracket screw 14530, roller 13765, and roller pin 14001, which are disassembled along with the bracket, appear in the same exploded view.

Main features

• Roller bracket for the platform group
• Original Dillon Precision replacement part
• Listed in the RL 550 platform group

Recommended use

Replacement of the roller bracket on Dillon RL 550 presses when the bracket is deformed or the roller no longer operates in alignment on the cam.

Manufacturer code: 14280
