Dillon Precision Tinnerman failsafe insert – 13801

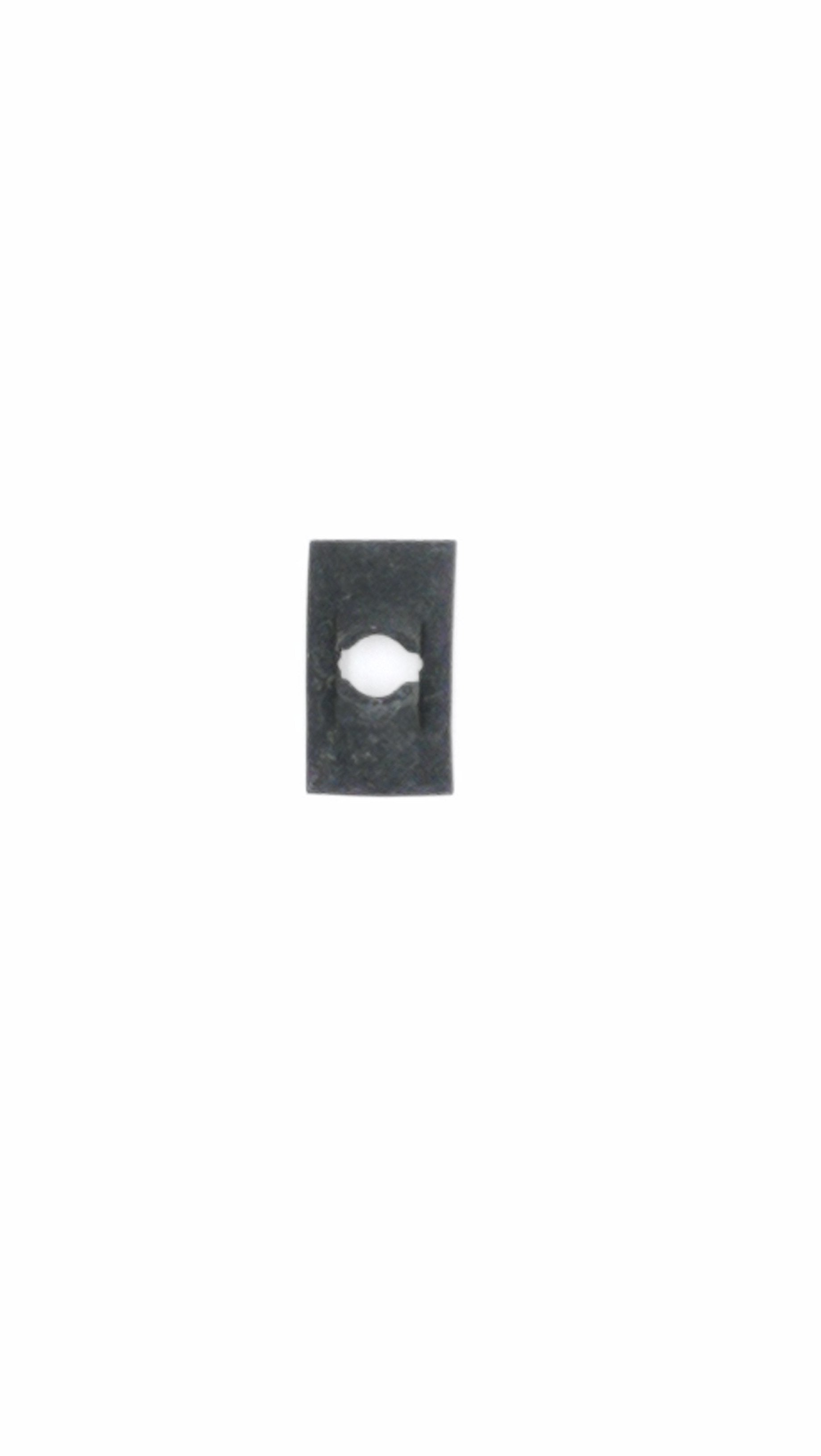

Dillon Precision Tinnerman Insert – 13801

The 13801 Tinnerman Insert is the spring-type insert that is part of the Dillon powder measure failsafe assembly. Dillon lists it in the Powder Measure Assy for the RL550 (page 65), XL650 (page 54), and Super 1050 (page 31), as well as the XL650 System Overview on page 47.

In the failsafe system, the insert works on the return rod along with the blue 13799 nut, the 18086 washer, and the 14033 primer cup spring: it is the part that maintains preload on the rod and ensures that the powder bar retracts completely with every cycle. A deformed insert results in inconsistent charges or powder being held in the body.

Main features

• Original Dillon Precision spare part
• Official designation: Tinnerman Insert
• Group: Powder Measure Assy failsafe
• Listed for RL550 (page 65), XL650 (pages 47 and 54), and Super 1050 (page 31)
• Associated components: Blue Failsafe Strip Nut 13799, #10 Rod Washer 18086, Primer Cup Spring 14033

Recommended use

Maintenance of the Dillon powder measure failsafe assembly on the platforms listed by Dillon: RL550, XL650, and Super 1050.

Manufacturer code: 13801
