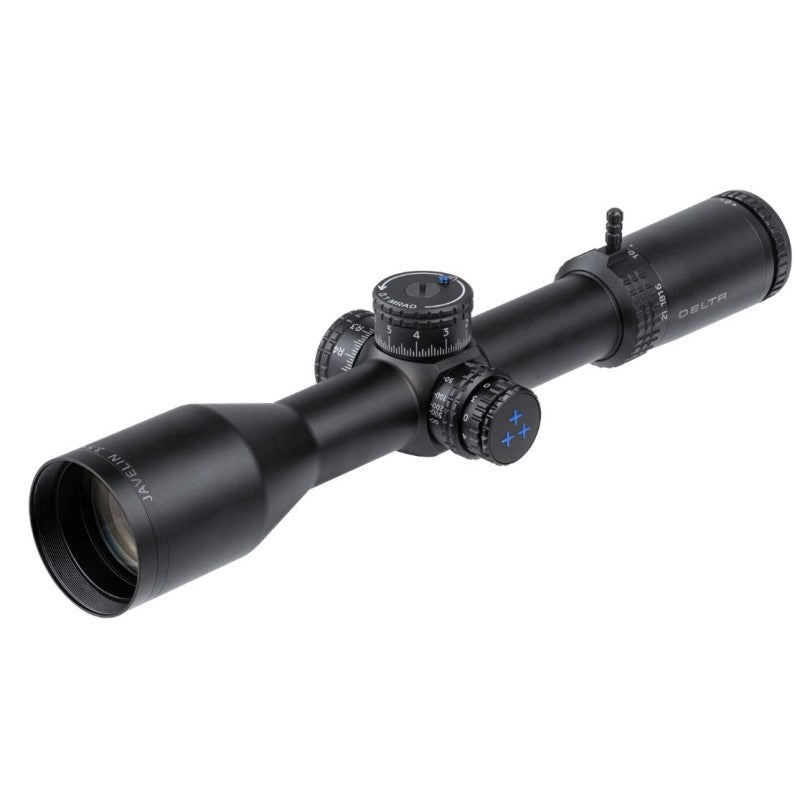

Delta Optical Javelin 3.5-21x50 FFP riflescope

Delta Optical Javelin 3.5-21x50 FFP

The Javelin 3.5-21x50 is the compact version of the Javelin first focal plane line: 353 millimeters in length and 890 grams compared to the 389 mm and 1036 g of the 4.5-30x56, with a 50 mm objective lens and 34 mm tube. It is the configuration that allows for a competition optic on short and semi-automatic rifles, and which, thanks to its contained weight and dimensions, is also widely used in hunting applications.

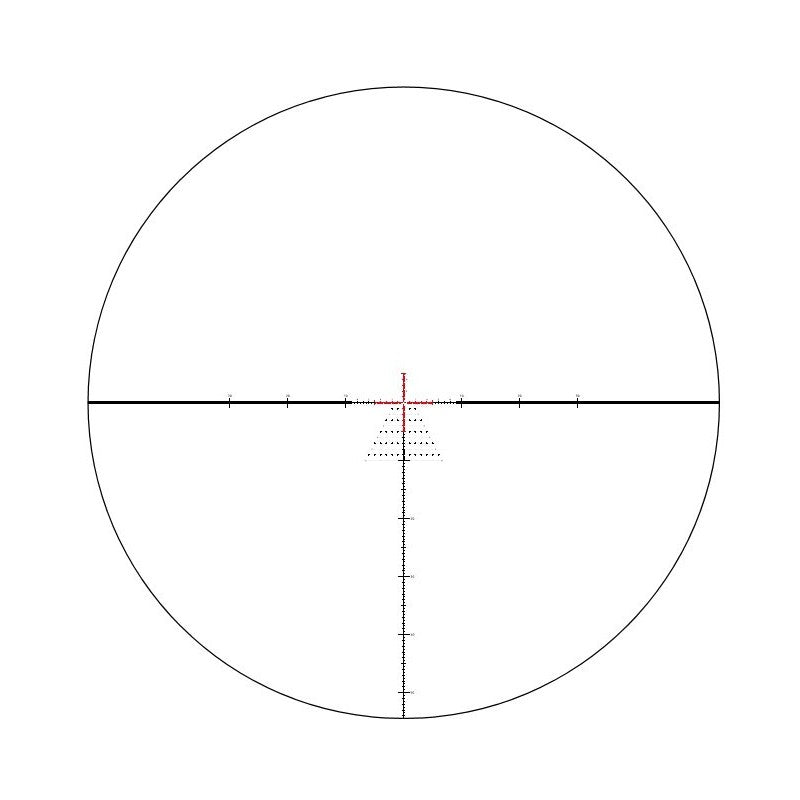

The first focal plane reticle keeps milliradian references proportional at any magnification, so elevation and windage corrections read in the reticle are always usable without returning to a calibration magnification. The turrets offer 0.1 MIL clicks with 29 MIL of travel for both elevation and windage, and the parallax adjustment works from 10 meters to infinity, a shorter minimum distance than the larger model and useful for close-range stages. The illuminated reticle is available in three patterns, MKR-1, MKR-2, and 4A, with illumination of either just the dot or the dot and crosshairs depending on the version; the very thin lines of the ED lenses also make it suitable for static target shooting.

Main features

• Magnification: 3.5-21x
• Objective diameter: 50 mm
• Tube diameter: 34 mm
• Focal plane: first focal plane (FFP)
• Available illuminated reticles: MKR-1, MKR-2, and 4A
• Click value: 0.1 MIL
• Elevation and windage adjustment range: 29 MIL
• Field of view at 100 m: 10.9 - 1.8 m
• Parallax adjustment: 10 meters to infinity
• Length: 353 mm - Weight: 890 g
• ED lenses, illumination of dot or dot and crosshair depending on the reticle

Recommended use

PRS, DMR, and medium to long-range shooting with compact or semi-automatic rifles; also used in selective hunting thanks to its low weight. Requires 34 mm rings or a one-piece mount.

Package contents

Riflescope, flip-up lens covers, sunshade, and throw lever.

Manufacturer code: DO-2473 (MKR-1) / DO-2474 (MKR-2) / DO-2475 (4A)
