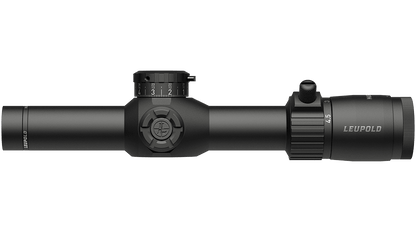

Leupold Mark 4HD 1-4.5x24 M5C3 SFP FireDot TMR Illuminated Riflescope 30mm Tube

Leupold Mark 4HD 1-4.5x24 M5C3 SFP FireDot TMR Illuminated 30mm Tube Riflescope

The Leupold Mark 4HD 1-4.5x24 is a tactical riflescope from the Mark 4HD series featuring a 30mm tube, 4:1 zoom ratio, and an M5C3 turret with 0.1 mil clicks. The illuminated FireDot TMR reticle is located on the second focal plane (SFP): the reticle thickness remains constant and highly legible at every magnification, while the measurement references are accurate at the manufacturer's specified magnification.

Leupold's Professional-Grade Optical System offers light transmission, contrast, and glare reduction; the parallax is adjustable from the side from 25 yards to infinity. The M5C3 ZeroLock turret with Zero Stop allows for fast and repeatable adjustments, with night-vision compatible illumination and an electronic reticle level. The 8-level illumination with Motion Sensor Technology extends battery life. Waterproof, fogproof, and shockproof construction, backed by the Leupold lifetime guarantee.

Main features

• Magnification: 1-4.5x (4:1 zoom)
• Objective: 24 mm
• Tube: 30 mm

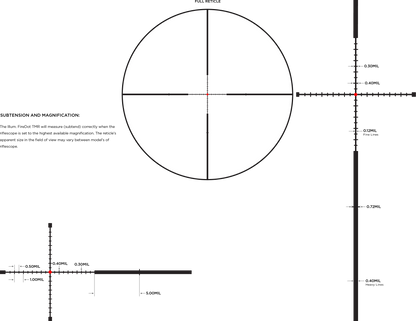

• Reticle: FireDot TMR, second focal plane (SFP)
• Illumination: 8 levels, Motion Sensor Technology
• Turrets: M5C3 ZeroLock with Zero Stop
• Adjustments: 0.1 mil; 10 mil per revolution
• Travel: 48 mil (165 MOA) elevation, 48 mil (165 MOA) windage
• Parallax: side focus from 25 yards to infinity
• Eye relief: 3.7-3.9″
• Field of view at 100 yards: 118.8 ft (1x) - 25.2 ft (4.5x)
• Length: 10.7″ (approx. 27 cm); weight: 18 oz (approx. 510 g)

Recommended use

AR-style semi-automatic rifles, dynamic shooting, and driven hunts, from close to medium ranges.

Leupold manufacturer code: 183316
