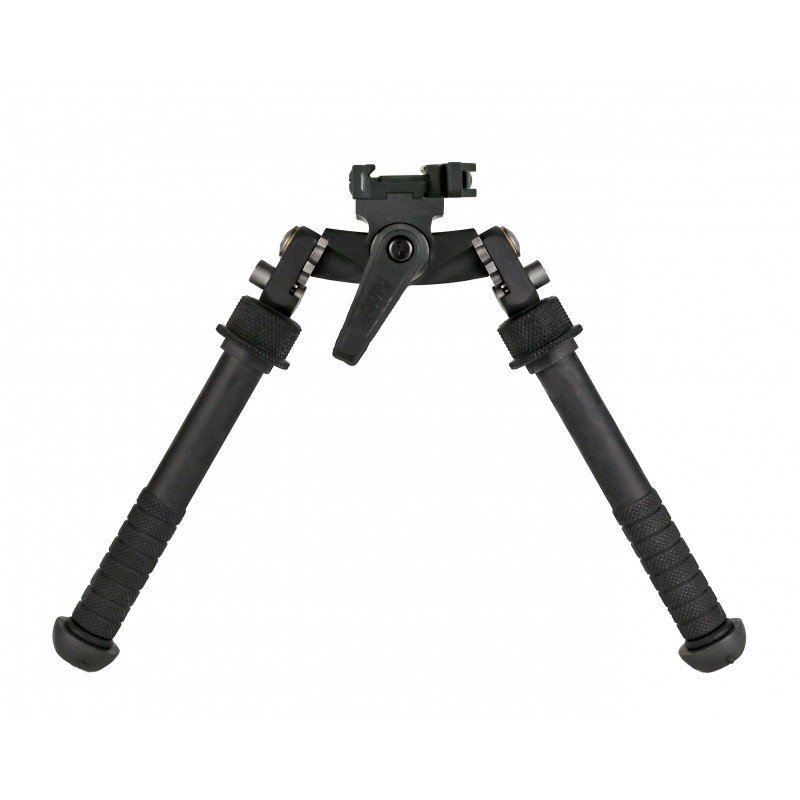

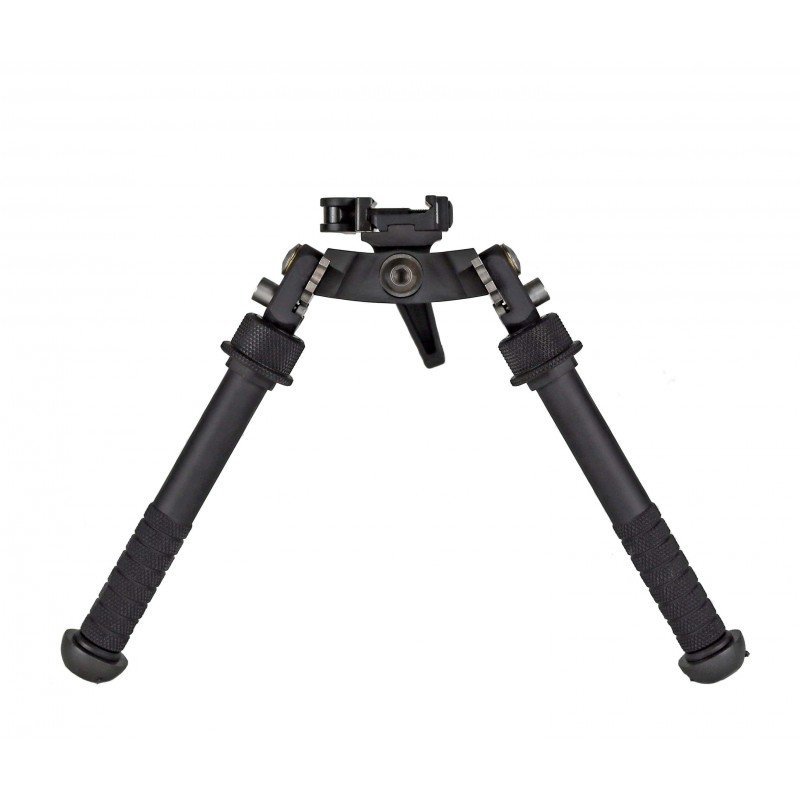

The BT65-LW17 mounts directly to any 1913 Picatinny rail via a low profile two-screw clamp assembly. It is constructed from 6061-T6 aluminum, which is Mil-Spec Type III hard coat anodized, and features heat-treated stainless steel components. We have chosen to support a shooting sports legend by utilizing the original KMW "Pod-Loc".
With the CAL bipod mounted to your rifle, you will be able to lock and unlock the cant motion by rotating the Pod-Loc lever. Turn clockwise to lock and counter-clockwise to unlock. The Pod-Loc lever position can be adjusted for positioning by pulling the lever straight out away from the CAL body and rotating it to the desired position. This positioning can be repeated until the optimal position is achieved. Available in black only.
Height Range: approximately 4.75 - 9.0"
Cant: 15 degrees +/-
5 Leg Positions: 0, 45, 90, 135 and 180 degrees
Non-Rotating Legs: The outer leg does not rotate around the inner leg
Larger, stronger inner legs
American Defense Manufacturing Quick Detach Picatinny Lever
