Konus Konuspro AS-34 tactical riflescope 2-6x28 34 mm tube illuminated Mil-Dot reticle

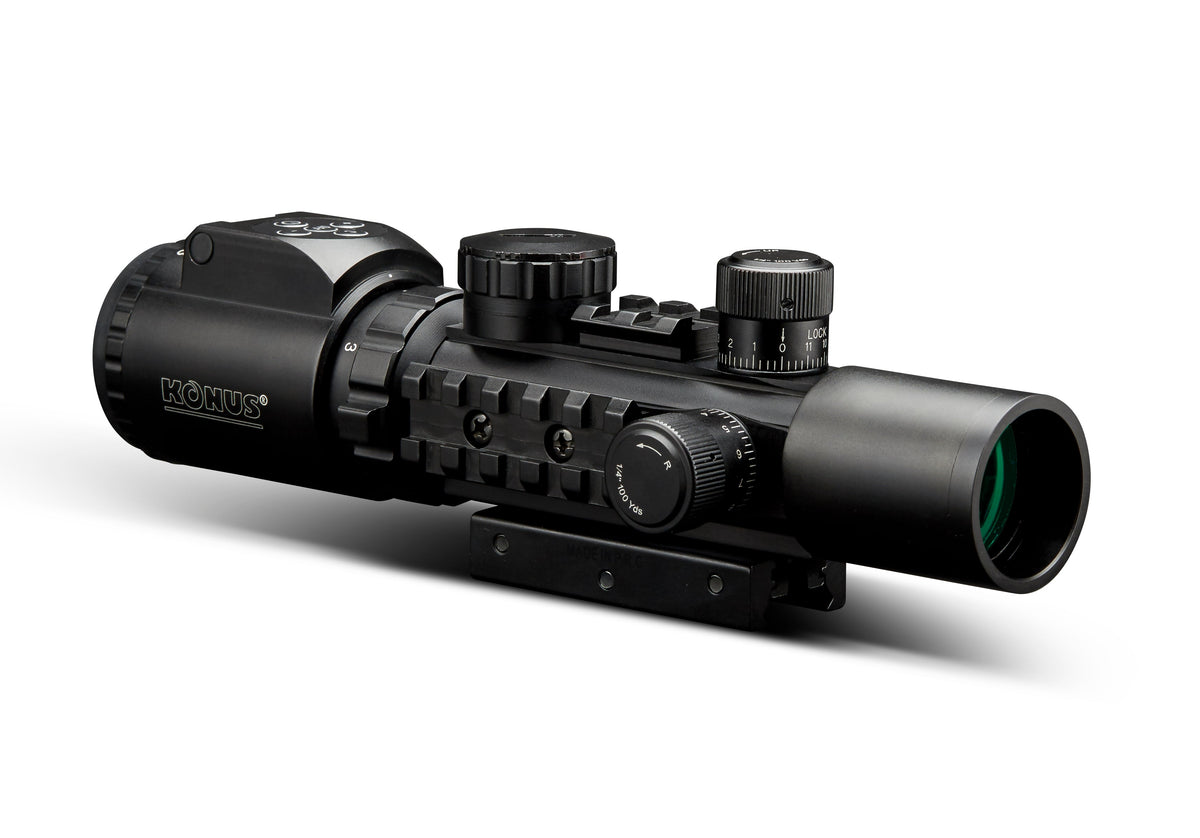

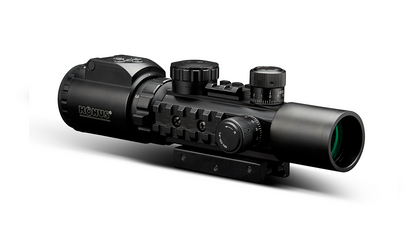

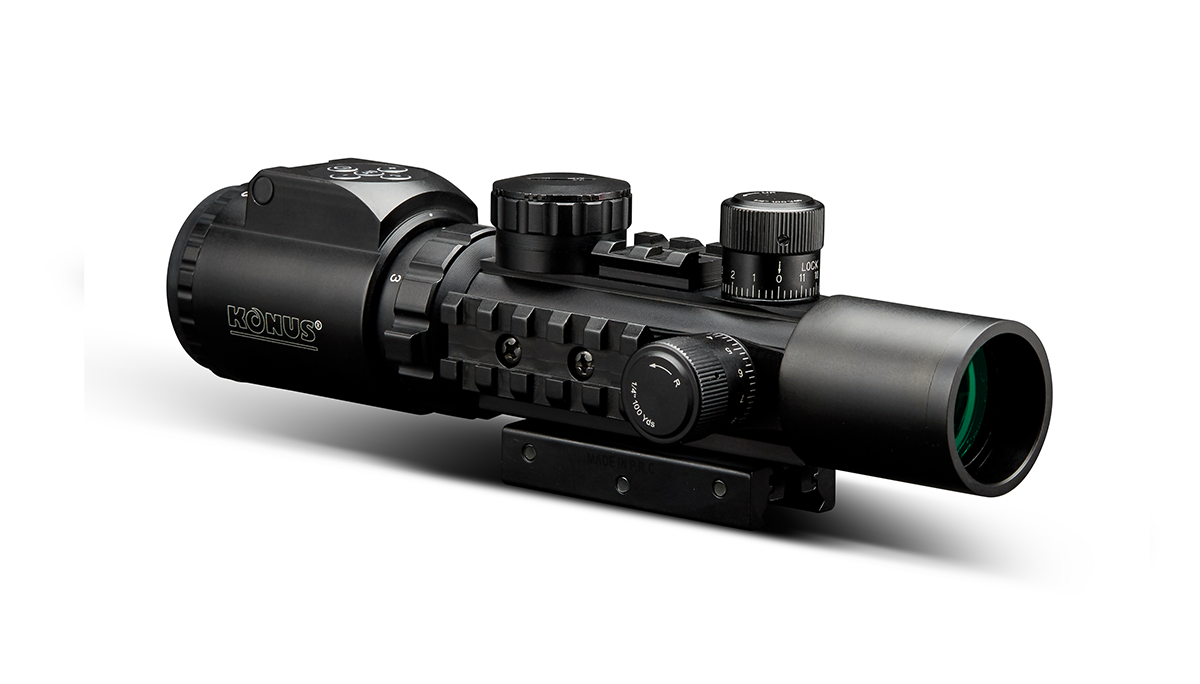

Konus Konuspro AS-34 2-6x28

The Konus Konuspro AS-34 2-6x28 is a tactical riflescope designed for fast target acquisition. It combines aiming speed and precision. The 34 mm tube ensures durability even in extreme conditions.

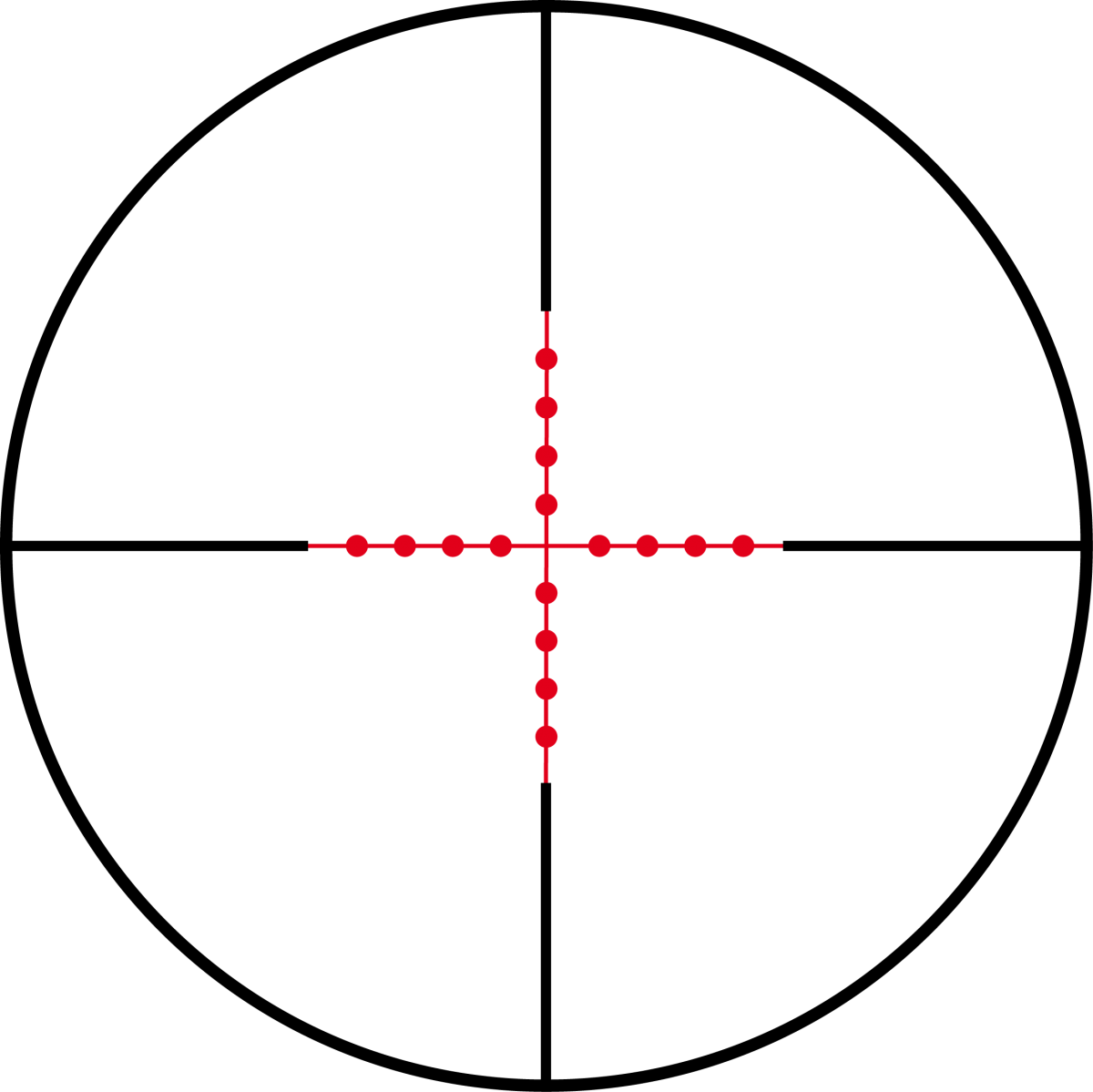

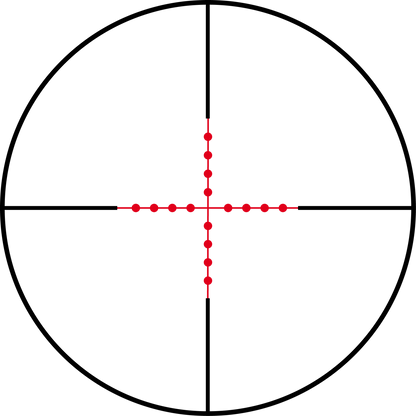

The Mil-Dot reticle is etched in the second focal plane. It is illuminated in red or green, with 5 intensity settings per colour. The wide angle and fast-focus eyepiece help with moving targets. The reversible base fits Weaver/Picatinny and .22 rails. The integrated tri-rail system accepts accessories.

Key features

• Magnification: 2-6x
• Objective diameter: 28 mm
• Tube diameter: 34 mm
• Reticle: etched Mil-Dot, second focal plane, red/green illuminated
• Illumination: 5 intensity settings per colour
• Field of view at 100 m: 18 m at 2x, 7.3 m at 6x
• Eye relief: 122 mm at 2x, 104 mm at 6x
• Exit pupil: 14 mm at 2x, 4.7 mm at 6x
• Click value at 100 m: 1/4 MOA (7.25 mm)
• Adjustment range at 100 m: 2.67 m
• Mounting length: 68 mm
• Length: 212 mm
• Weight: 560 g
• Locking tactical turrets
• Illuminated bubble level
• Integrated tri-rail system
• Fully multi-coated optics
• Nitrogen-filled: waterproof, fogproof, shockproof
• Power: CR2032 button cell battery

Recommended use

Tactical and dynamic shooting, driven hunting and fast shots at moving targets. Mounts on Weaver/Picatinny rails or .22 rails.

Package contents

• Konuspro AS-34 2-6x28 riflescope
• Reversible base for Weaver/Picatinny and .22 rails
• CR2032 battery

Manufacturer code: Konus 7170
