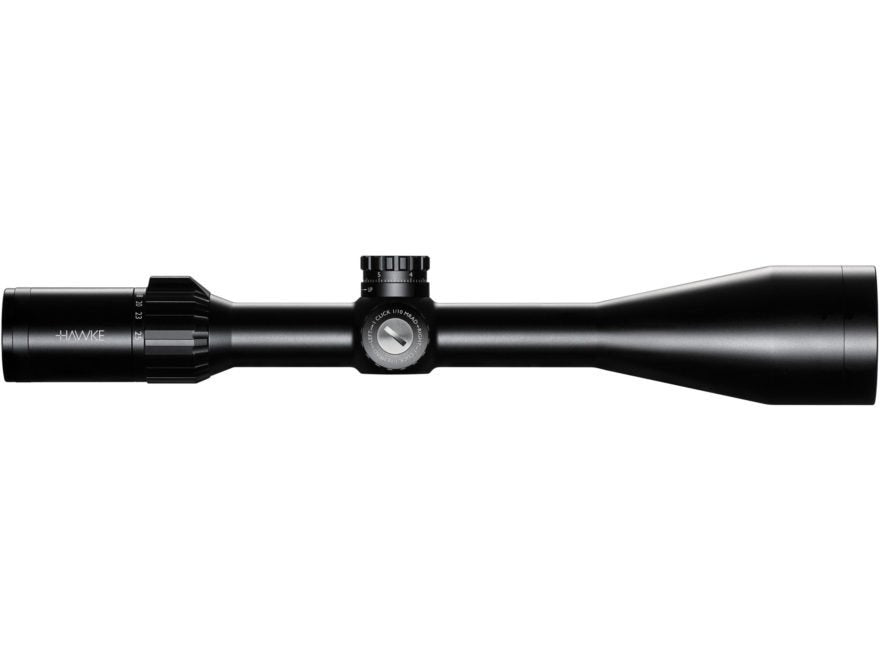

Hawke Frontier 30 5-25x 56mm FFP Mil Ext IR Reticle

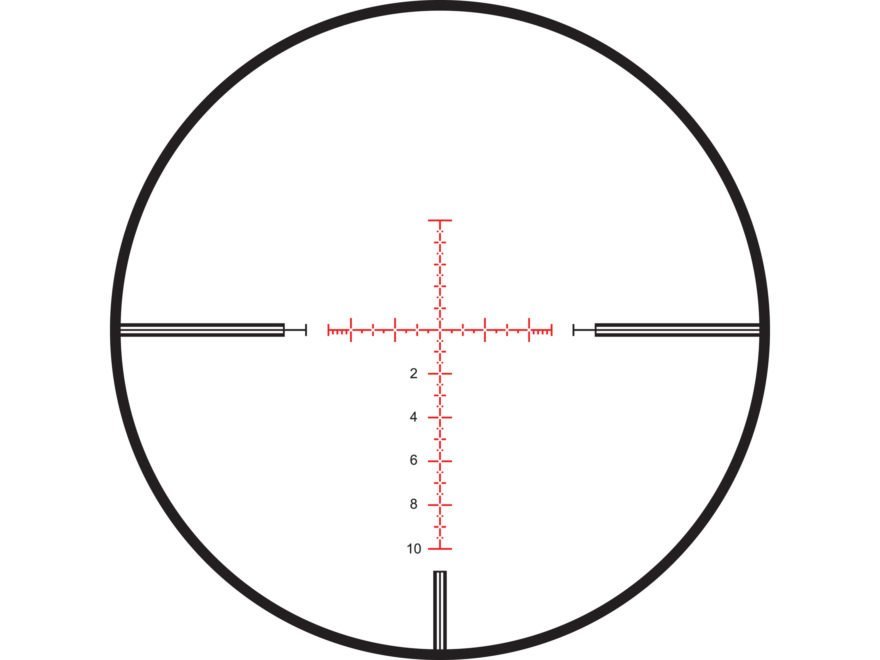

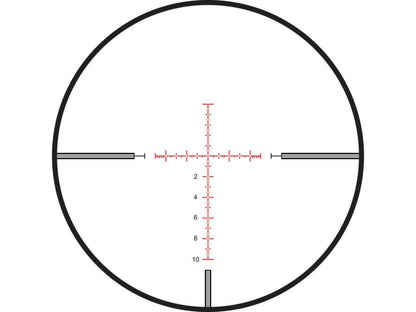

The Mil FFP Ext. reticle was designed specifically for first focal plane optics and is based on common mil-spaced reticle principles. With half-mil-spaced markings extending to 10 mils in windage, the Mil FFP Ext. reticle is highly versatile and provides aiming points even at the most extreme ranges.

Characteristics:

• Optical system on the first focal plane
• Optical system with 5× magnification factor and 21-layer full multi-coating
• Parallax with side adjustment ring up to infinity
• 30mm one-piece tube for superior strength
• High focal length for magnum or high recoil calibers
• Reticle etched on the lens with red illumination
• 6 levels of reticle illumination, with intermediate off positions
• Tall, lockable turrets with 1/10 MRAD adjustment
• Eyepiece with quick focus and magnification ring

Includes:

• Zoom lever
• Lens cleaning cloth
• Lens Covers
• CR2032 Battery
• Lens Cleaning Cloth

Specifications:

• Chassis: 30mm One-Piece Tube
• Optical System: 5-25×
• Lens: 56mm
• Reticle: FFP Mil Ext.
• Lighting: Red — 6 Levels
• Parallax/Focus: Side Focus — 23m / 25yds to Infinity
• Field of View: m @100m / ft @100yds - 7.2 — 1.4m / 21.7 — 4.3ft
• Focal Distance: 102mm / 4″
• Length: 397mm / 15.6″
• Weight: 817g / 28.8oz
• Nitrogen filled, watertight, condensation proof and shockproof.
• All caliber rated.
• Material: Aluminum
• Exit pupil: 11.2-2.3mm / 0.44-0.09″
• Eyepiece Type: Rapid Focus
• Lens Treatment: Multi-Layer Lens Coating — 21 Layers
• Power Selector Style: Removable Zoom Lever
• Focal Plane: First Focal Plane (FFP)
• Elevation adjustment sensitivity: 1/10 MRAD
• Elevation adjustment range: 15 MRAD
• Pan/Tilt Sensitivity: 1/10 MRAD
• Windage adjustment range: 15 MRAD
• Turret covers: NO
• Turrets: Exposed, Lockable
